SKU:
CN N4080E454
€ 24.192,17
1-2 weeks delivery time
-
+
The Nanni N4.80 engine, paired with the TM345H gearbox and a reduction ratio of 2.47, offers a powerful and efficient solution for marine applications. It features a 57.4 kW output at the crankshaft, a 2.434 L displacement, and operates at 2700 rpm with a peak torque of 220 Nm at 1800 rpm. With a four-cylinder design, turbocharged and intercooled air intake, and an EPA marine Tier 3 emission standard, this engine is built for durability and performance.
- Description
- Ask a Question
-

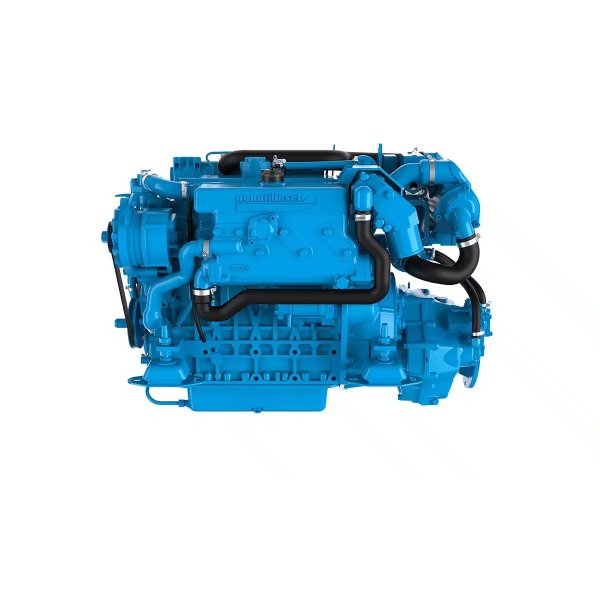

Nanni N4.80, Gearbox TM345H, Reduction 2.47
The Nanni N4.80 engine with the TM345H gearbox and a reduction ratio of 2.47 offers robust performance and efficiency for demanding marine applications. Here are the details:
- Power at crankshaft: 57.4 kW [79 hp] / 52.9 kW [72 hp] SD
- Displacement: 2.434 l [148.5 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 220 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: indirect E-TVCS (Three Vortex Combustion System)
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger and air-cooled
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 275 kg [606 lbs]
- Dry weight with SD12: 296 kg [652 lbs]
Additional Specifications:
- Horsepower: 78 kW (57.4 hp)
- RPM: 2700
- Cylinders: 4 / 2434 cm³
- Gearbox: TM345H
- Reduction: 2.47
- Panel: C4
-
