SKU:
CN N4080E424
€ 24.254,10
1-2 weeks delivery time
-
+
The Nanni N4.80 with Gearbox TM345A and Reduction 2.47 offers a powerful 79 horsepower output, featuring a 4-cylinder, 4-stroke diesel engine. It is equipped with a turbocharged, intercooled air intake and a closed cooling system, ensuring optimal performance. This engine meets EPA marine Tier 3 emission standards and has a dry weight of 275 kg. With a reduction ratio of 2.47, it provides a balance of power and fuel efficiency for various marine applications.
- Description
- Ask a Question
-

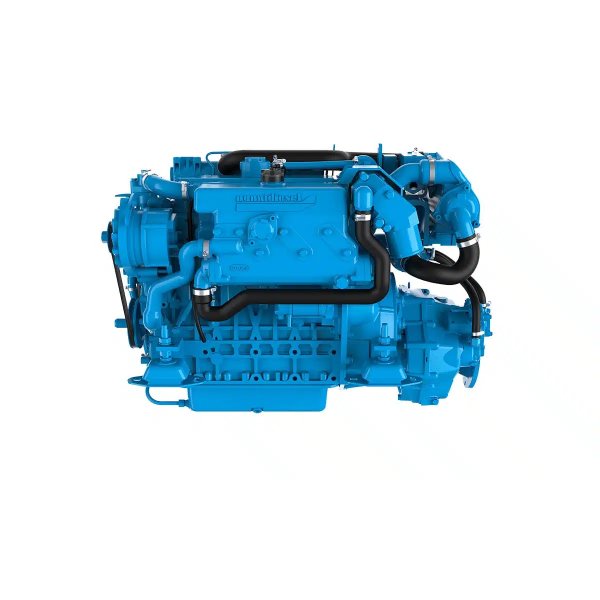

Nanni N4.80, Gearbox TM345A, Reduction 2.47
The Nanni N4.80 engine, combined with the TM345A gearbox and Reduction of 2.47, provides reliable power and performance for various marine needs. Here are the detailed specifications:
- Power at crankshaft: 57.4 kW [79 hp] / 52.9 kW [72 hp] SD
- Displacement: 2.434 l [148.5 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 220 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: indirect E-TVCS (Three Vortex Combustion System)
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger and air-cooled
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 275 kg [606 lbs]
- Dry weight with SD12: 296 kg [652 lbs]
- Horsepower (kW): 78 (57.4)
- Rpm: 2700
- Cylinders/cm³: 4 / 2434
- Gearbox: TM345A
- Reduction: 2.47
- Panel: C4
-
