SKU:
CN N4080E414
€ 24.254,10
1-2 weeks delivery time
-
+
The Nanni N4.80 with Gearbox TM345A and Reduction 2.00 is a robust marine engine offering 79 horsepower. Its turbocharged and intercooled system, combined with a closed cooling system, provides high reliability and fuel efficiency. The engine is designed with a 4-cylinder configuration and meets EPA marine Tier 3 standards. With a dry weight of 275 kg and a reduction ratio of 2.00, it is built to handle a variety of marine applications with excellent performance.
- Description
- Ask a Question
-

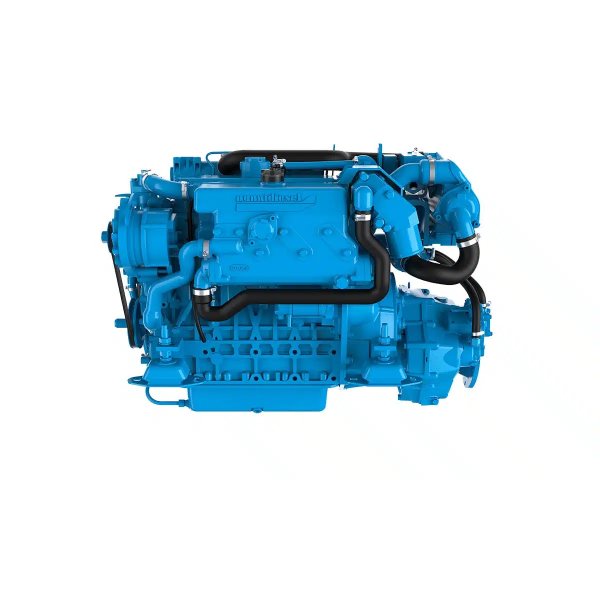

Nanni N4.80, Gearbox TM345A, Reduction 2.00
The Nanni N4.80 with Gearbox TM345A and Reduction 2.00 is a powerful and reliable engine designed for various marine applications. Below are the detailed specifications:
- Power at crankshaft: 57.4 kW [79 hp] / 52.9 kW [72 hp] SD
- Displacement: 2.434 l [148.5 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 220 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: indirect E-TVCS (Three Vortex Combustion System)
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger and air-cooled
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 275 kg [606 lbs]
- Dry weight with SD12: 296 kg [652 lbs]
- Horsepower (kW): 78 (57.4)
- Rpm: 2700
- Cylinders/cm³: 4 / 2434
- Gearbox: TM345A
- Reduction: 2.00
- Panel: C4
-
