SKU:
CN N4065SZ24
€ 21.329,44
1-2 weeks delivery time
-
+
The Nanni N4.65 Saildrive SD12 is a marine engine designed for applications requiring a Saildrive configuration. It delivers 59 horsepower with a 4-cylinder, 4-stroke diesel engine that offers fuel efficiency and solid performance. The engine includes a turbocharged air intake, mechanical indirect injection, and a closed cooling system with heat exchanger, making it reliable for marine use. Its emissions meet the IMO Annex VI and RCD 2013/53/EU standards, with a dry weight of 248 kg and a maximum mounting angle of 15° front up/down.
- Description
- Ask a Question
-

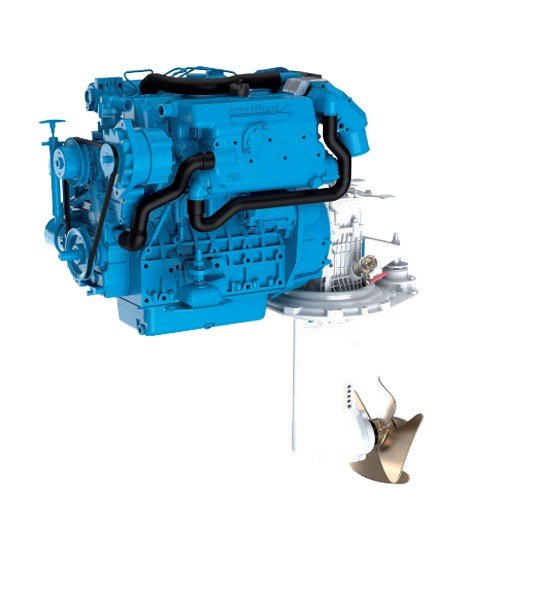

Nanni N4.65 Saildrive SD12, No Gearbox
The Nanni N4.65 Saildrive SD12 is engineered for marine applications requiring a Saildrive configuration. It offers excellent fuel efficiency and performance with a compact and versatile design. Key features include:
- Power at crankshaft: 43.4 kW [59 hp]
- Displacement: 2.434 l [148.5 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 168 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: turbocharged
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 248 kg [546 lbs]
Additional specifications:
- Horsepower (kW): 59 (43.4)
- Rpm: 2700
- Cylinders/cm³: 4 / 2434
- Gearbox: -
- Reduction: 2.23
- Panel: C4
-
