SKU:
CN N4065E304
€ 21.344,26
1-2 weeks delivery time
-
+
The Nanni N4.65 with the ZF25M gearbox and a reduction ratio of 1.88 provides enhanced performance and torque for marine applications. This 4-cylinder, 4-stroke diesel engine delivers 43.4 kW (59 hp) with a displacement of 2,434 cc. It has a turbocharged air intake, closed cooling system, and a peak torque of 168 Nm at 1,800 rpm, with a rated speed of 2,700 rpm. The engine features a ZF25M gearbox, making it suitable for applications that require more efficient torque distribution. With a dry weight of 248 kg (546 lbs), it complies with various emission standards.
- Description
- Ask a Question
-

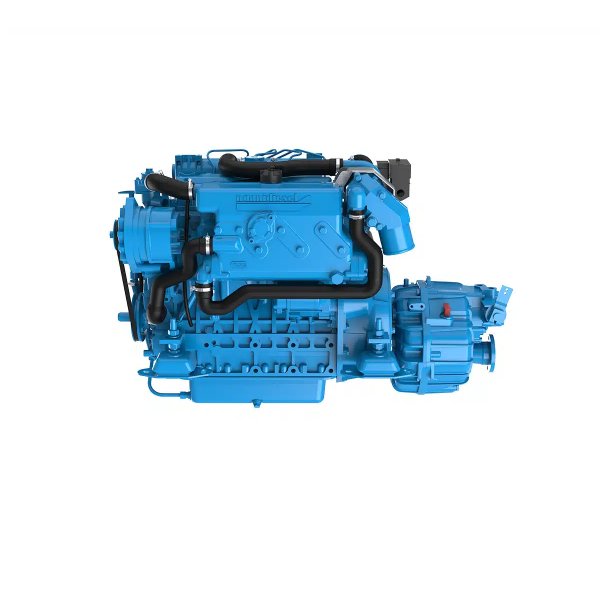

Nanni N4.65, Gearbox ZF25M, Reduction 1.88
For enhanced performance, the Nanni N4.65 with ZF25M gearbox and reduction offers greater torque and efficiency for marine applications. Here's an overview of its specifications:
- Power at crankshaft: 43.4 kW [59 hp]
- Displacement: 2,434 l [148.5 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 168 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 248 kg [546 lbs]
- Horsepower (kW): 59 (43.4)
- Rpm: 2700
- Cylinders/cm³: 4 / 2434
- Gearbox: ZF25M
- Reduction: 1.88
- Panel: C4
-
