SKU:
CN N4065E354
€ 21.957,76
1-2 weeks delivery time
-
+
The Nanni N4.65 with the ZF25H gearbox and a reduction ratio of 2.80 is a reliable 4-stroke diesel engine designed for marine applications. It features a 59 hp power output, a 2.434-liter displacement, and a turbocharged air intake system. Its robust mechanical indirect injection fuel system ensures efficiency, while the engine's peak torque of 168 Nm at 1800 rpm provides reliable performance in various operating conditions.
- Description
- Ask a Question
-

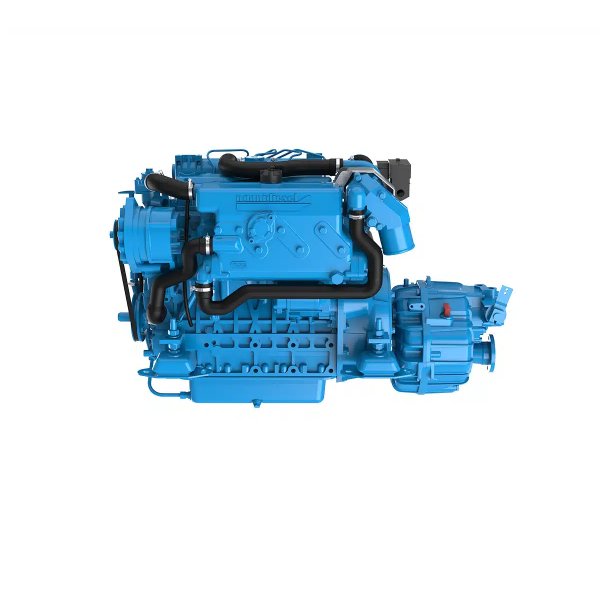

Nanni N4.65, Gearbox ZF25H, Reduction 2.80
The Nanni N4.65 is a powerful 4-stroke diesel engine built for reliability and efficiency. Here are its key features:
- Power at crankshaft: 43.4 kW [59 hp]
- Displacement: 2.434 l [148.5 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 168 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: turbocharged
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 248 kg [546 lbs]
Specifications:
- Horsepower: 59 hp (43.4 kW)
- Rated rpm: 2700
- Cylinders / Displacement: 4 cylinders / 2434 cm³
- Gearbox: ZF25H
- Reduction: 2.80
- Panel: C4
-
