The Nanni N4.65 with ZF25A gearbox and a reduction ratio of 2.70 delivers dependable power for marine vessels. It maintains the same essential specifications as other N4.65 variants, with a 59 hp power output and a 2.434-liter engine displacement. Its closed cooling system with a heat exchanger and turbocharged intake system ensures long-lasting durability and efficiency for demanding maritime applications.
- Description
- Ask a Question
-

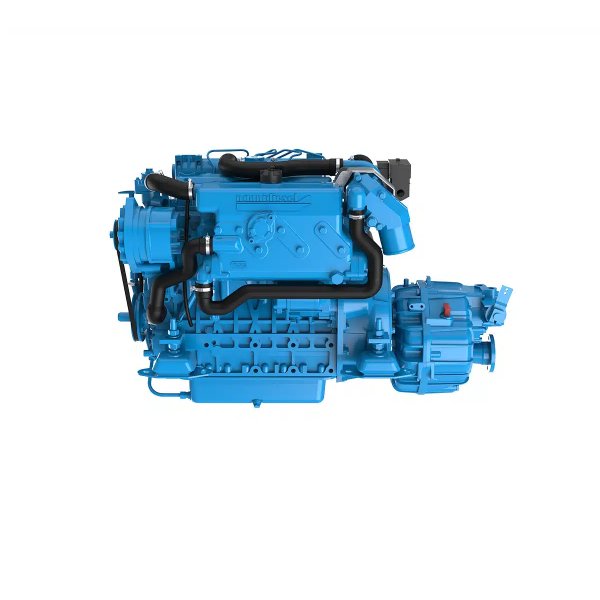

Nanni N4.65, Gearbox ZF25A, Reduction 2.70
The Nanni N4.65 with the ZF25A gearbox and a 2.70 reduction ratio provides optimal power for various marine applications. Key specifications include:
- Power at crankshaft: 43.4 kW [59 hp]
- Displacement: 2.434 l [148.5 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 168 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: turbocharged
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 248 kg [546 lbs]
Specifications:
- Horsepower: 59 hp (43.4 kW)
- Rated rpm: 2700
- Cylinders / Displacement: 4 cylinders / 2434 cm³
- Gearbox: ZF25A
- Reduction: 2.70
- Panel: C4
-
