SKU:
CN N4065E454
€ 21.527,02
1-2 weeks delivery time
-
+
The Nanni N4.65 with Gearbox TM345H and a reduction ratio of 2.47 is designed for robust marine applications. With the same power output and displacement as other models, it provides exceptional torque and performance in challenging conditions. The mechanical indirect injection and turbocharged air intake system ensure efficiency, while meeting IMO Annex VI and other emissions standards for environmentally friendly operation.
- Description
- Ask a Question
-

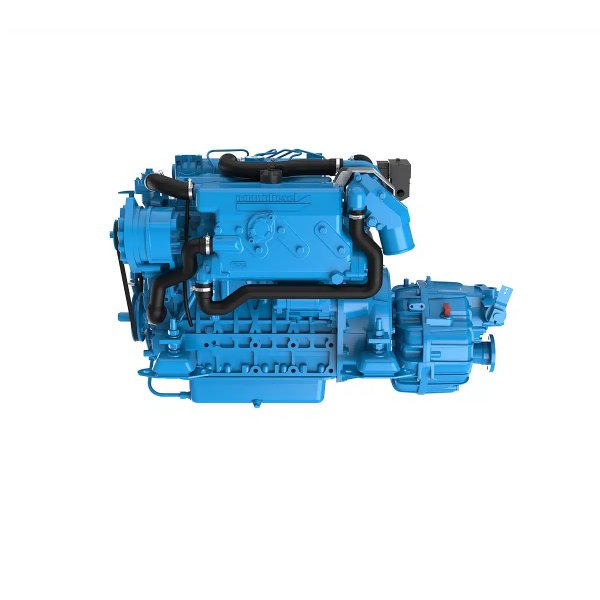

Nanni N4.65, Gearbox TM345H, Reduction 2.47
The Nanni N4.65 engine provides powerful and reliable performance for various marine applications. With a robust design and efficient fuel system, this engine ensures long-lasting operation and optimal power output. Key features include:
- Power at crankshaft: 43.4 kW [59 hp]
- Displacement: 2.434 l [148.5 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 168 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: turbocharged
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 248 kg [546 lbs]
Additional specifications:
- Horsepower (kW): 59 (43.4)
- Rpm: 2700
- Cylinders/cm³: 4 / 2434
- Gearbox: TM345H
- Reduction: 2.47
- Panel: C4
-
