SKU:
CN N4065E444
€ 21.766,36
1-2 weeks delivery time
-
+
The Nanni N4.65 with Gearbox TM345H and a reduction ratio of 2.00 is optimized for marine operations requiring superior performance and durability. This engine offers 59 hp and features a turbocharged intake, mechanical indirect injection fuel system, and a closed cooling circuit. It ensures long-term reliability and efficiency, complying with various emission standards to meet regulatory requirements.
- Description
- Ask a Question
-

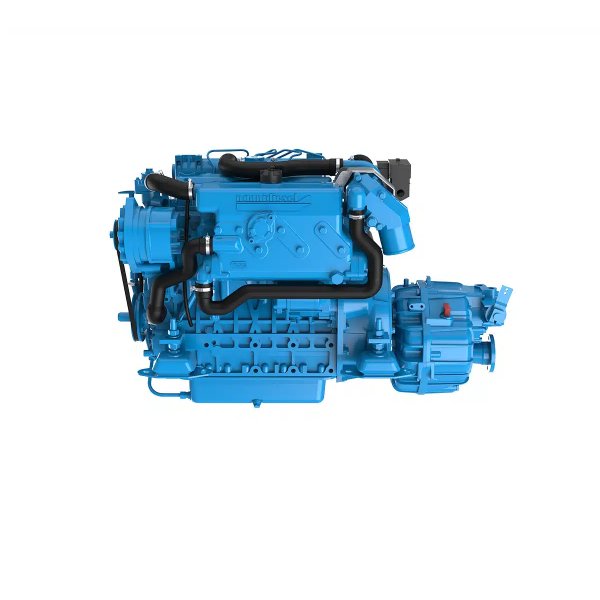

Nanni N4.65, Gearbox TM345H, Reduction 2.00
Explore the Nanni N4.65 engine with Gearbox TM345H and a reduction ratio of 2.00. This combination offers exceptional performance and longevity for demanding operations.
- Power at crankshaft: 43.4 kW [59 hp]
- Displacement: 2.434 l [148.5 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 168 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 248 kg [546 lbs]
- Horsepower (kW): 59 (43.4)
- RPM: 2700
- Cylinders / cm³: 4 / 2434
- Gearbox: TM345H
- Reduction: 2.00
- Panel: C4
-
