SKU:
CN N4065E004
€ 17.527,31
1-2 weeks delivery time
-
+
The Nanni N4.65 Bobtail engine is a powerful and reliable option for marine applications, featuring a 4-cylinder, 4-stroke diesel engine with 43.4 kW (59 hp) output. With a displacement of 2,434 cc, turbocharged air intake, and a closed cooling system, it offers a peak torque of 168 Nm at 1,800 rpm and a rated speed of 2,700 rpm. This engine does not include a gearbox, making it ideal for applications requiring more flexibility. The engine's dry weight is 248 kg (546 lbs), and it meets various emission standards.
- Description
- Ask a Question
-

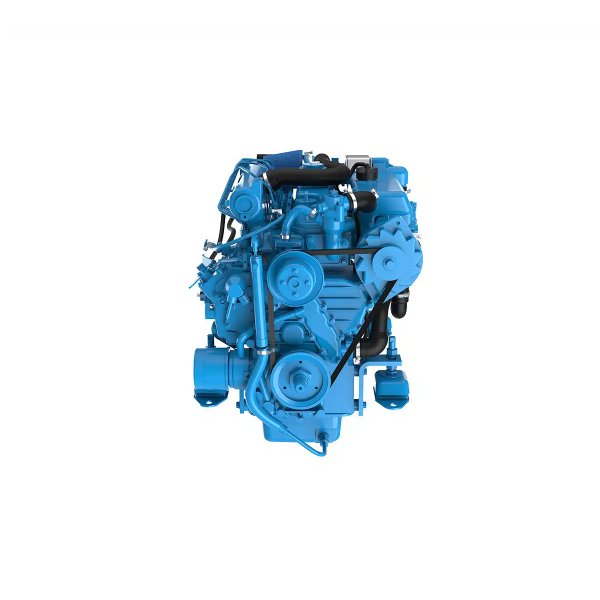

Nanni N4.65 Bobtail (MEC), No Gearbox
The Nanni N4.65 Bobtail engine offers reliable power for demanding marine conditions. Here's an overview of the key specifications:
- Power at crankshaft: 43.4 kW [59 hp]
- Displacement: 2,434 l [148.5 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23 : 1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 168 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 248 kg [546 lbs]
- Horsepower (kW): 59 (43.4)
- Rpm: 2700
- Cylinders/cm³: 4 / 2434
- Gearbox: -
- Reduction: -
- Panel: C4
-
