SKU:
CN N4050SZ24
€ 19.523,56
1-2 weeks delivery time
-
+
The Nanni N4.50 Saildrive SD12 engine provides reliable performance with a 4-cylinder, 4-stroke diesel setup, delivering 35.4 kW (47.5 hp). It comes with a 2,197 cc displacement, a mechanical indirect injection fuel system, and a turbocharged air intake. With a peak torque of 146 Nm at 1,800 rpm and a rated speed of 2,800 rpm, this engine offers robust marine performance. It also features a closed cooling system and is compliant with various emission standards, with a dry weight of 229 kg (504 lbs) and a reduction ratio of 2.23.
- Description
- Ask a Question
-

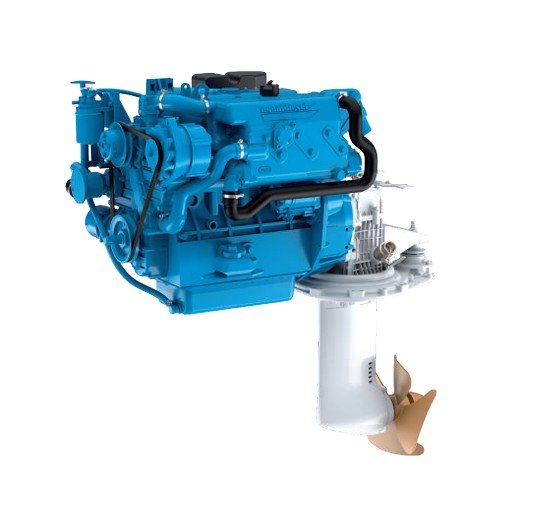

Nanni N4.50 Saildrive SD12, No Gearbox
Introducing the Nanni N4.50 Saildrive SD12 engine, designed for high performance and efficiency in marine applications. Here's an overview of its specifications:
- Power at crankshaft: 35.4 kW [47.5 hp]
- Displacement: 2,197 l [134 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 83 x 92.4 mm [3.27 x 3.64 in]
- Compression ratio: 22 : 1
- Rated speed: 2800 rpm
- Idle speed: 840 rpm
- Peak torque: 146 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC35A: 229 kg [504 lbs]
- Horsepower (kW): 47.5 (35.4)
- Rpm: 2800
- Cylinders/cm³: 4 / 2197
- Reduction: 2.23
- Panel: C4
-
