SKU:
CN N4050E454
€ 18.825,93
1-2 weeks delivery time
-
+
The Nanni N4.50, coupled with the TMC345H gearbox and a 2.47 reduction ratio, delivers robust power and torque for demanding marine applications. This engine generates 35.4 kW (47.5 hp) with a displacement of 2,197 cc and operates at a rated speed of 2800 rpm. It features mechanical indirect injection, a natural air intake system, and closed cooling. The engine complies with EPA marine Tier 3 and RCD 2013/53/EU emissions standards, weighs 229 kg (504 lbs), and provides a peak torque of 146 Nm at 1800 rpm.
- Description
- Ask a Question
-

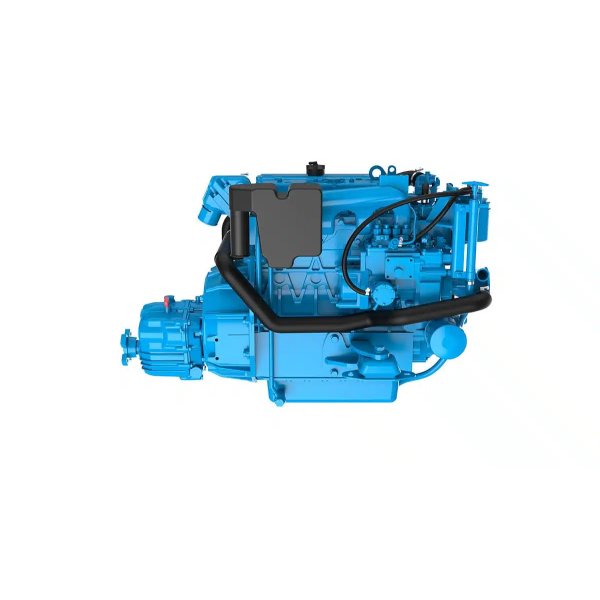

Nanni N4.50, Gearbox TMC345H, Reduction 2.47
The Nanni N4.50 with TMC345H gearbox and 2.47 reduction ratio is engineered for reliability and power. This model offers optimal performance for various marine applications.
- Power at crankshaft: 35.4 kW [47.5 hp]
- Displacement: 2,197 l [134 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 83 x 92.4 mm [3.27 x 3.64 in]
- Compression ratio: 22 : 1
- Rated speed: 2800 rpm
- Idle speed: 840 rpm
- Peak torque: 146 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC35A: 229 kg [504 lbs]
- Horsepower (kW): 47,5 (35,4)
- RPM: 2800
- Cylinders/cm³: 4 / 2197
- Gearbox: TMC345H
- Reduction: 2.47
- Panel: C4
-
