SKU:
CN N4050E444
€ 18.840,29
1-2 weeks delivery time
-
+
The Nanni N4.50 with the TMC345H gearbox and a 2.00 reduction ratio is engineered for high efficiency and reliable performance in marine conditions. Offering 35.4 kW (47.5 hp) at the crankshaft and a 2,197 cc displacement, it runs at a rated speed of 2800 rpm. The engine features mechanical indirect injection, natural air intake, and a closed cooling system. It adheres to EPA marine Tier 3 and RCD 2013/53/EU emissions standards, with a dry weight of 229 kg (504 lbs) and a peak torque of 146 Nm at 1800 rpm.
- Description
- Ask a Question
-

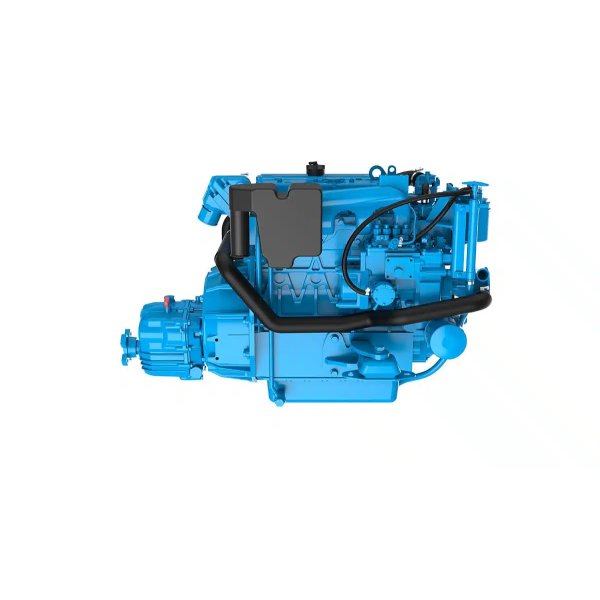

Nanni N4.50, Gearbox TMC345H, Reduction 2.00
Introducing the Nanni N4.50 with the TMC345H gearbox and a 2.00 reduction ratio. This powerful marine engine combines robust design with high efficiency for optimal performance on the water.
- Power at crankshaft: 35.4 kW [47.5 hp]
- Displacement: 2,197 l [134 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 83 x 92.4 mm [3.27 x 3.64 in]
- Compression ratio: 22 : 1
- Rated speed: 2800 rpm
- Idle speed: 840 rpm
- Peak torque: 146 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC35A: 229 kg [504 lbs]
- Horsepower (kW): 47,5 (35,4)
- RPM: 2800
- Cylinders/cm³: 4 / 2197
- Gearbox: TMC345H
- Reduction: 2.00
- Panel: C4
-
