SKU:
CN N4050E414
€ 18.883,59
1-2 weeks delivery time
-
+
The Nanni N4.50 with the TMC345A gearbox and a 2.00 reduction ratio offers an optimal combination of power and efficiency for marine operations. The engine produces 35.4 kW (47.5 hp) with a displacement of 2,197 cc and a rated speed of 2800 rpm. It includes mechanical indirect injection, natural air intake, and a closed cooling system. Complying with EPA marine Tier 3 and RCD 2013/53/EU emissions standards, it weighs 229 kg (504 lbs) and provides peak torque of 146 Nm at 1800 rpm.
- Description
- Ask a Question
-

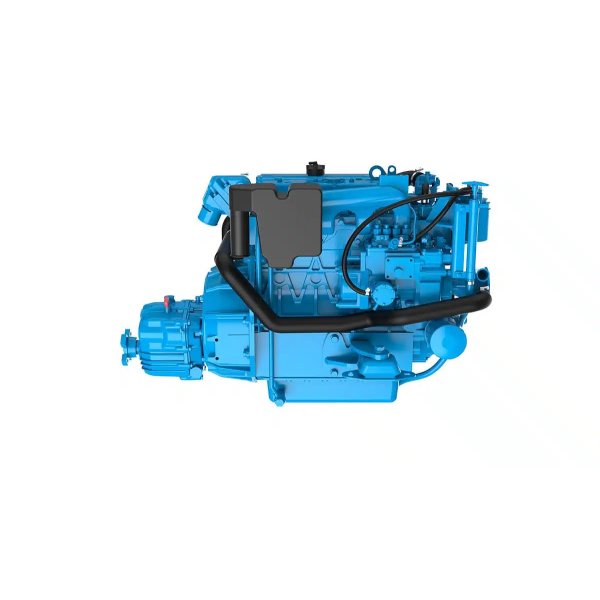

Nanni N4.50, Gearbox TMC345A, Reduction 2.00
The Nanni N4.50 engine with the TMC345A gearbox and 2.00 reduction ratio offers an optimized balance of power and fuel efficiency, ideal for demanding marine environments.
- Power at crankshaft: 35.4 kW [47.5 hp]
- Displacement: 2,197 l [134 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 83 x 92.4 mm [3.27 x 3.64 in]
- Compression ratio: 22:1
- Rated speed: 2800 rpm
- Idle speed: 840 rpm
- Peak torque: 146 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC35A: 229 kg [504 lbs]
- Horsepower (kW): 47.5 (35.4)
- Rpm: 2800
- Cylinders/cm³: 4 / 2197
- Gearbox: TMC345A
- Reduction: 2.00
- Panel: C4
-
