SKU:
CN N4040E212
€ 15.644,52
1-2 weeks delivery time
-
+
The Nanni N4.40 engine with the TMC60 M gearbox and a reduction ratio of 2.50 provides 40 hp and operates at 2800 rpm. Its 1,999 l displacement and 22.8:1 compression ratio ensure efficient power. With mechanical indirect injection and natural air intake, this engine features a closed cooling system designed for marine environments. It has a dry weight of 227 kg with the TMC35A gearbox and 259 kg with the Sail Drive SP60.
- Description
- Ask a Question
-

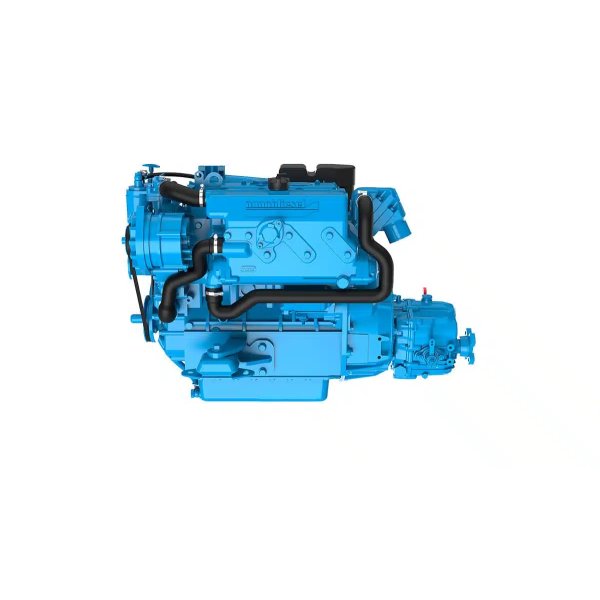

Nanni N4.40, Gearbox TMC60 M, Reduction 2.50
The Nanni N4.40 engine with a gearbox and reduction system ensures reliability and high performance. Check out the details of this model:
- Horsepower: 40 kW (29.4 HP)
- RPM: 2800
- Cylinders: 4 cylinders, 1999 cm³
- Gearbox: TMC60 M
- Reduction Ratio: 2.50
- Panel: A4
Additional Specifications:
- Power at crankshaft: 29.4 kW [40 hp]
- Displacement: 1,999 l [122 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 83 x 92.4 mm [3.27 x 3.64 in]
- Compression ratio: 22.8 : 1
- Rated speed: 2800 rpm
- Idle speed: 850 rpm
- Peak torque: 110 Nm
- Peak torque speed: 2000 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: RCD 2013/53/EU & EPA marine Tier 3
- Dry weight with TMC35A: 227 kg [500 lbs]
- With Sail Drive SP60: 259 kg [570 lbs]
-
