SKU:
CN N4040E202
€ 15.644,52
1-2 weeks delivery time
-
+
The Nanni N4.40 engine with the TMC60 M gearbox and a reduction ratio of 2.00 offers 40 hp at 2800 rpm, with a 1,999 l displacement and a 22.8:1 compression ratio. It is equipped with a 4-cylinder, 4-stroke diesel configuration, mechanical indirect injection, and natural air intake. The engine also features a closed cooling system, making it ideal for marine use. The dry weight is 227 kg with the TMC35A gearbox and 259 kg with the Sail Drive SP60.
- Description
- Ask a Question
-

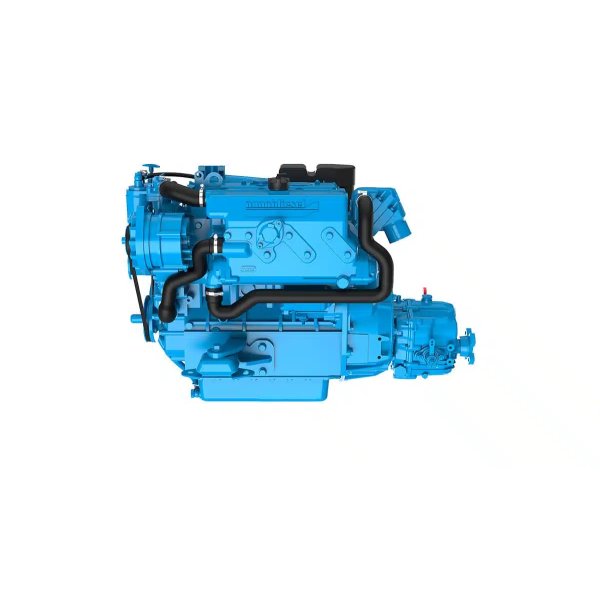

Nanni N4.40, Gearbox TMC60 M, Reduction 2.00
The Nanni N4.40 is a robust and efficient marine engine, delivering impressive performance with its gearbox and reduction system. Here are the key specifications:
- Horsepower: 40 kW (29.4 HP)
- RPM: 2800
- Cylinders: 4 cylinders, 1999 cm³
- Gearbox: TMC60 M
- Reduction Ratio: 2.00
- Panel: A4
Additional Specifications:
- Power at crankshaft: 29.4 kW [40 hp]
- Displacement: 1,999 l [122 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 83 x 92.4 mm [3.27 x 3.64 in]
- Compression ratio: 22.8 : 1
- Rated speed: 2800 rpm
- Idle speed: 850 rpm
- Peak torque: 110 Nm
- Peak torque speed: 2000 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: RCD 2013/53/EU & EPA marine Tier 3
- Dry weight with TMC35A: 227 kg [500 lbs]
- With Sail Drive SP60: 259 kg [570 lbs]
-
