SKU:
CN N4040E002
€ 14.343,30
1-2 weeks delivery time
-
+
The Nanni N4.40 Bobtail engine delivers 40 hp with a 1,999 l displacement and a 22.8:1 compression ratio. Designed for marine applications, it operates at a rated speed of 2800 rpm with a peak torque of 110 Nm at 2000 rpm. This 4-cylinder, 4-stroke diesel engine includes mechanical indirect injection and natural air intake. It comes with a closed cooling system and a maximum mounting angle of 15°. The engine weighs 227 kg with the TMC35A gearbox and 259 kg with the Sail Drive SP60.
- Description
- Ask a Question
-

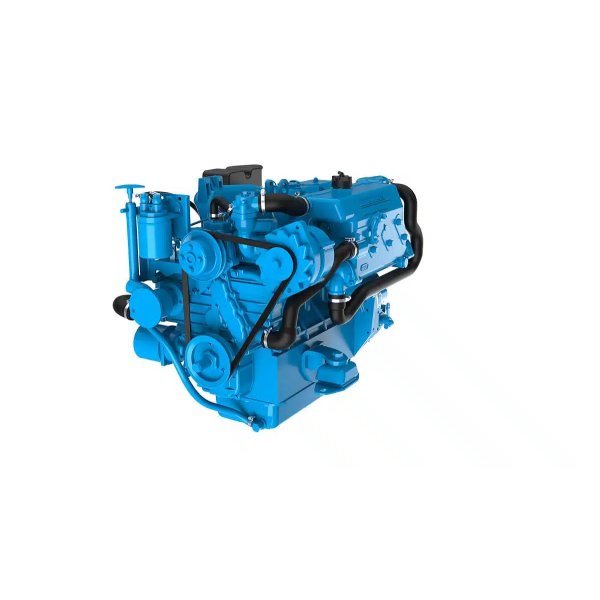

Nanni N4.40 Bobtail
The Nanni N4.40 Bobtail engine is a high-performance, 4-stroke diesel engine designed for marine applications. It offers a robust power output and efficient performance with various features suited for a range of boats.
- Power at crankshaft: 29.4 kW [40 hp]
- Displacement: 1,999 l [122 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 83 x 92.4 mm [3.27 x 3.64 in]
- Compression ratio: 22.8:1
- Rated speed: 2800 rpm
- Idle speed: 850 rpm
- Peak torque: 110 Nm
- Peak torque speed: 2000 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: RCD 2013/53/EU & EPA marine Tier 3
- Dry weight with TMC35A: 227 kg [500 lbs]
- Dry weight with Sail Drive SP60: 259 kg [570 lbs]
This engine is ideal for those looking for a compact and reliable solution for their marine propulsion system.
Specifications
- Horsepower (kW): 40 (29.4)
- Rpm: 2800
- Cylinders: 4 / 1999 cm³
- Gearbox: Not included
- Reduction: Not specified
- Panel: A4
-
