SKU:
CN N4038SZ22
€ 18.894,71
1-2 weeks delivery time
-
+
The Nanni N4.38 Saildrive SD12 engine provides the same 37.5 hp as other variants but without a gearbox, offering flexibility for various marine propulsion systems. It has a 1,498 l displacement and a 23:1 compression ratio, reaching a rated speed of 3000 rpm. With mechanical indirect injection, natural air intake, and a closed cooling system, it is designed for marine use. The engine has a dry weight of 153 kg with the TMC60 gearbox and 184 kg with the Sail Drive SP60.
- Description
- Ask a Question
-

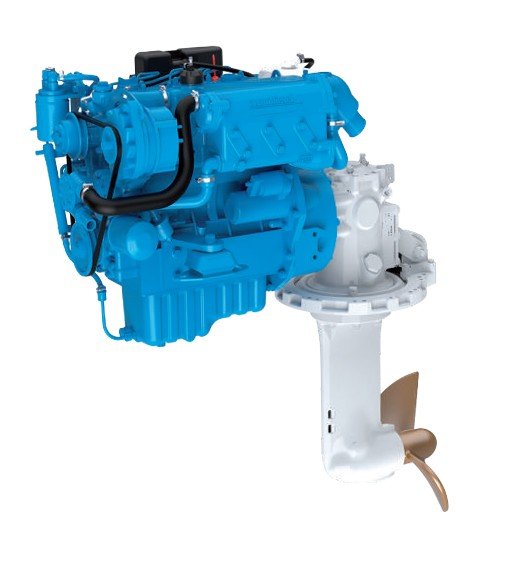

Nanni N4.38 Saildrive SD12, No Gearbox
Explore the powerful and reliable Nanni N4.38 Saildrive SD12 engine, designed to meet your boating needs with exceptional performance. Here are the key details:
- Power at crankshaft: 27.6 kW (37.5 hp)
- Displacement: 1,498 l (91 in³)
- Configuration: 4 cylinders in line
- Engine Type: 4-stroke diesel
- Bore and Stroke: 78 x 78.4 mm (3.07 x 3.09 in)
- Compression Ratio: 23 : 1
- Rated Speed: 3000 rpm
- Idle Speed: 850 rpm
- Peak Torque: 94.8 Nm
- Peak Torque Speed: 2200 rpm
- Engine Base: Kubota
- Fuel System: Mechanical indirect injection
- Air Intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum Mounting Angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission Standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry Weight with TMC60: 153 kg (337 lbs)
- Dry Weight with Sail Drive SP60: 184 kg (405 lbs)
-
