SKU:
CN N4038E872
€ 14.328,81
1-2 weeks delivery time
-
+
The Nanni N4.38 engine, paired with the TMC60A gearbox and a reduction ratio of 2.00, offers the same power output of 37.5 hp. It shares the same 1,498 l displacement, 4-cylinder in-line configuration, and a rated speed of 3000 rpm. With a compression ratio of 23:1 and natural air intake, the engine also features mechanical indirect injection and a closed cooling system, making it well-suited for marine environments. The engine weighs 153 kg with the gearbox and 184 kg with the Sail Drive SP60.
- Description
- Ask a Question
-

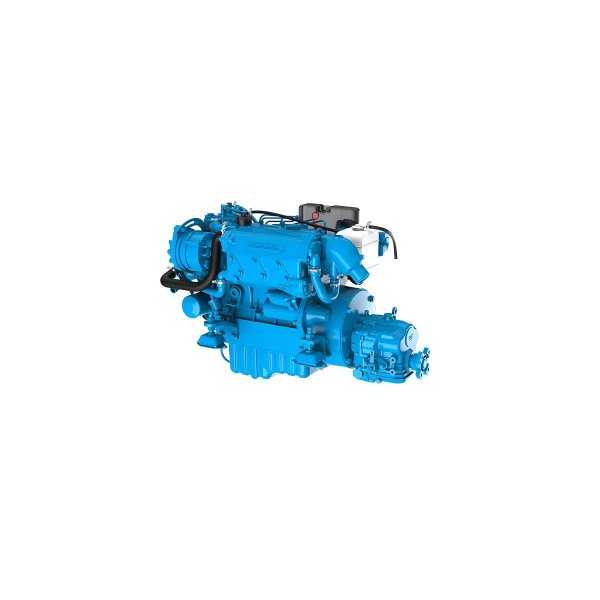

Nanni N4.38, Gearbox - TMC60A, Reduction 2.00
The Nanni N4.38 engine paired with the TMC60A gearbox and a reduction ratio of 2.00 delivers reliable power for various marine applications. Below are the key details:
- Power at crankshaft: 27.6 kW [37.5 hp]
- Displacement: 1,498 l [91 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 78 x 78.4 mm [3.07 x 3.09 in]
- Compression ratio: 23:1
- Rated speed: 3000 rpm
- Idle speed: 850 rpm
- Peak torque: 94.8 Nm
- Peak torque speed: 2200 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC60: 153 kg [337 lbs]
- Dry weight with Sail Drive SP60: 184 kg [405 lbs]
-
