SKU:
CN N4038E202
€ 14.049,53
1-2 weeks delivery time
-
+

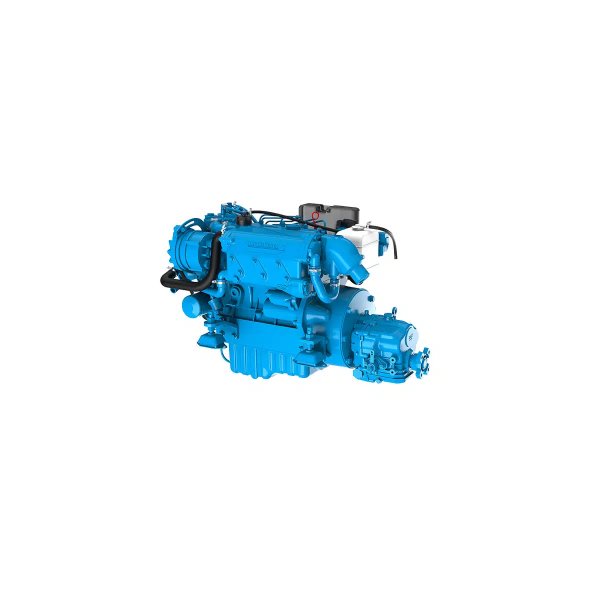

The Nanni N4.38 engine with TMC60 M gearbox and 2.00 reduction provides efficient and powerful marine propulsion. Delivering 37.5 kW \[27.6 hp] with a peak torque of 94.8 Nm at 2200 rpm, this 4-cylinder, 4-stroke diesel engine operates at a rated speed of 3000 rpm. With a dry weight of 153 kg with TMC60, it offers high performance for a variety of marine applications.
- Description
- Ask a Question
-
Nanni N4.38, Gearbox TMC60 M, Reduction 2.00
The Nanni N4.38 engine with a TMC60 M gearbox and a reduction ratio of 2.00 offers high performance and efficiency. Here are the key specifications:
- Power at crankshaft: 27.6 kW [37.5 hp]
- Displacement: 1,498 l [91 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 78 x 78.4 mm [3.07 x 3.09 in]
- Compression ratio: 23:1
- Rated speed: 3000 rpm
- Idle speed: 850 rpm
- Peak torque: 94.8 Nm
- Peak torque speed: 2200 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC60: 153 kg [337 lbs]
- Dry weight with Sail Drive SP60: 184 kg [405 lbs]
-
