SKU:
CN N4038E002
€ 12.505,45
1-2 weeks delivery time
-
+
The Nanni N4.38 Bobtail engine offers impressive performance with a 37.5 kW \[27.6 hp] 4-cylinder, 4-stroke diesel engine. With a displacement of 1498 l and a peak torque of 94.8 Nm at 2200 rpm, it provides reliable marine propulsion. This engine operates at a rated speed of 3000 rpm, and with a dry weight of 153 kg with TMC60, it is ideal for various marine applications.
- Description
- Ask a Question
-

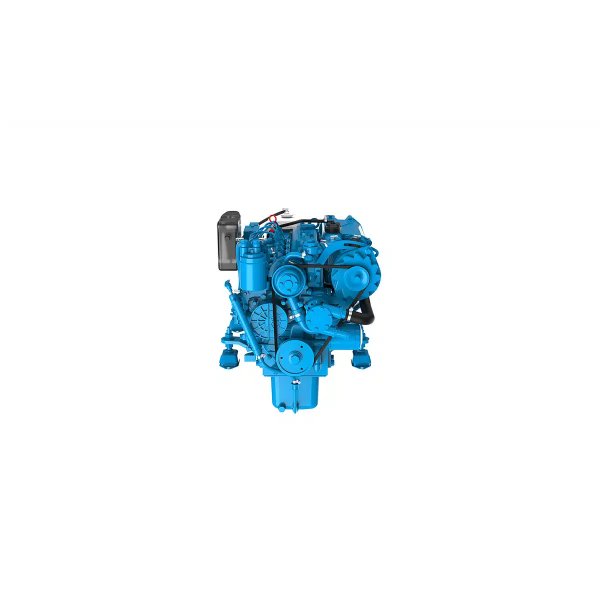

Nanni N4.38 Bobtail (MEC), No Gearbox
Introducing the Nanni N4.38 Bobtail engine, a high-performance, reliable, and efficient diesel engine designed to meet the needs of various marine applications. Below are the key specifications:
- Panel : A4
- Horsepower (kW): 37.5 kW (27.6 hp)
- Rated speed: 3000 rpm
- Cylinders: 4 cylinders, 1498 cm³
- Power at crankshaft: 27.6 kW [37.5 hp]
- Displacement: 1498 l [91 in³]
- Engine configuration: 4 cylinders in line
- Engine type: 4-stroke diesel
- Bore and stroke: 78 x 78.4 mm [3.07 x 3.09 in]
- Compression ratio: 23:1
- Idle speed: 850 rpm
- Peak torque: 94.8 Nm
- Peak torque speed: 2200 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Natural
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC60: 153 kg [337 lbs]
- Dry weight with Sail Drive SP60: 184 kg [405 lbs]
-
