SKU:
CN N4140SZ34
€ 44.792,51
1-2 weeks delivery time
-
+
The Nanni N4.140 Saildrive SD15 engine is designed for high-performance marine use, offering 135 hp at the crankshaft. This 4-cylinder, 4-stroke diesel engine has a displacement of 3,769 liters and a peak torque of 453.6 Nm at 1600 rpm. It features a turbocharged and intercooled air intake system, a closed cooling system with a heat exchanger, and a dry weight of 353 kg with the SD15 saildrive. The engine also meets EPA marine Tier 3 emissions standards.
- Description
- Ask a Question
-

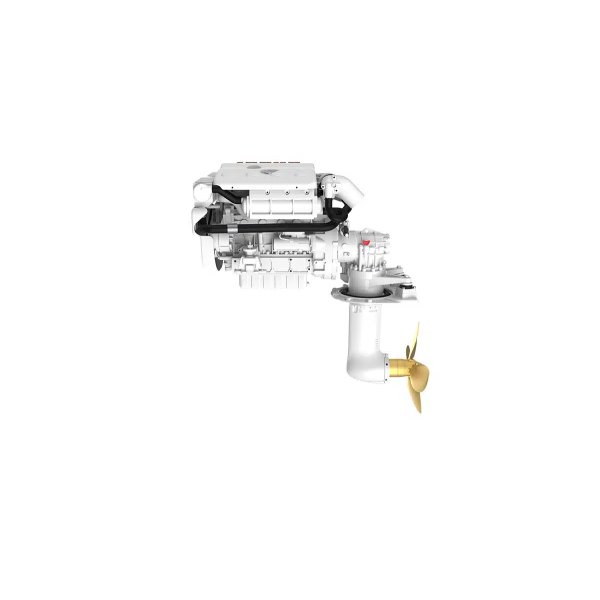

Nanni N4.140 Saildrive SD15, No Gearbox
The Nanni N4.140 Saildrive SD15 engine is designed for high-performance marine use. Below are its specifications:
- Power at crankshaft: 99.4 kW [135 hp]
- Displacement: 3,769 l [230 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1 : 1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 453.6 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: mechanical direct injection, SD with electronic injection
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 353 kg [778 lbs]
- Dry weight with SD15: 353 kg [778 lbs]
- Horsepower (kW): 135 (99)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Gearbox: -
- Reduction: -
- Panel: C4
-
