SKU:
CN N4115SZ34
€ 43.294,98
1-2 weeks delivery time
-
+
The Nanni N4.115 Saildrive SD15, No Gearbox, provides the same powerful performance of 115 hp at 2600 rpm as the standard N4.115 engines. This 4-cylinder, 4-stroke diesel engine offers a 3.769-liter displacement. With turbocharged and intercooled air intake, along with a closed cooling system, it maintains high performance and reliability. The engine features a mechanical direct injection system and complies with EPA Tier 3 marine emission standards. It weighs 450 kg with the SD15 saildrive, making it suitable for various marine applications.
- Description
- Ask a Question
-

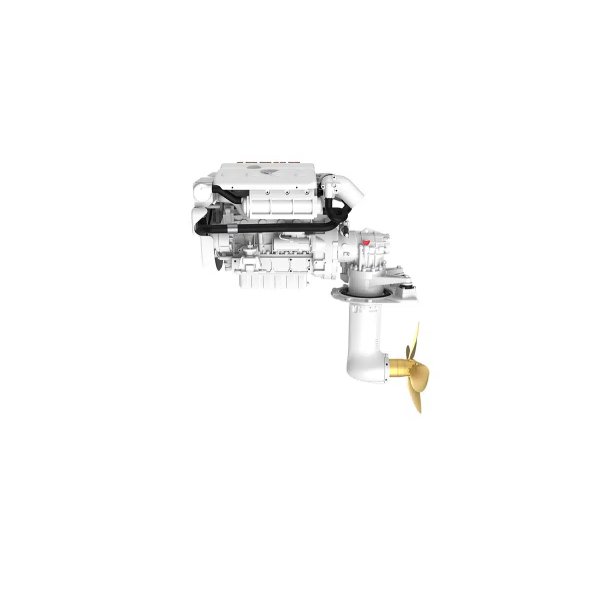

Nanni N4.115 Saildrive SD15, No Gearbox
The Nanni N4.115 is a powerful and efficient engine designed for marine applications. Below are the key specifications:
- Power at crankshaft: 84.6 kW [115 hp]
- Displacement: 3,769 l [230 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1 : 1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 387 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: mechanical direct injection, SD with electronic speed control
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 378 kg [833 lbs]
- Dry weight with SD15: 450 kg [992 lbs]
Additional specifications:
- Horsepower (kW): 115 (84.6)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Gearbox: -
- Reduction: -
- Panel: C4
-
