SKU:
CN N4115E534
€ 27.881,13
1-2 weeks delivery time
-
+
The Nanni N4.115 with Gearbox ZF45A and Reduction 2.44 delivers the same reliable power of 115 hp at 2600 rpm as its counterparts. Designed with a 4-cylinder, 4-stroke diesel engine, it has a displacement of 3.769 liters. Featuring a turbocharged and intercooled air intake and closed cooling system, the engine ensures high efficiency. Its mechanical direct injection system and electronic speed control further optimize performance. This engine adheres to EPA marine Tier 3 emission standards and has a dry weight of 378 kg with TMC345A.
- Description
- Ask a Question
-

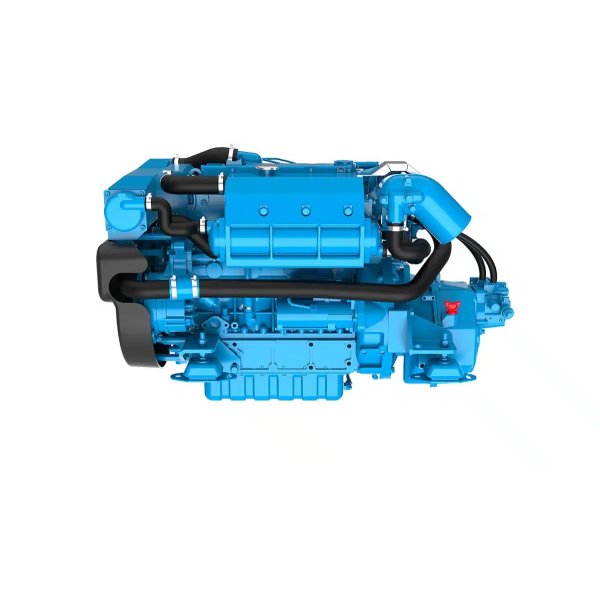

Nanni N4.115, Gearbox ZF45A, Reduction 2.44
The Nanni N4.115 with Gearbox ZF45A and Reduction 2.44 is a versatile marine engine, offering excellent power delivery and smooth operation. Below are the technical specifications:
- Power at crankshaft: 84.6 kW [115 hp]
- Displacement: 3,769 l [230 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1:1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 387 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: Mechanical direct injection, SD with electronic speed control
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 378 kg [833 lbs]
- Dry weight with SD15: 450 kg [992 lbs]
Additional Information:
- Horsepower (kW): 115 (84.6)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Gearbox: ZF45A
- Reduction: 2.44
-
