The Nanni N4.115 with Gearbox ZF45A and Reduction 2.03 is a high-performance marine engine, offering 115 hp at 2600 rpm. It features a 4-cylinder, 4-stroke diesel configuration with a displacement of 3.769 liters. Turbocharged and intercooled, the engine provides impressive torque and efficiency, with peak torque of 387 Nm at 1600 rpm. It includes a mechanical direct injection fuel system, and its cooling system is closed with a heat exchanger. The engine meets EPA Tier 3 marine emission standards and weighs 378 kg with TMC345A.
- Description
- Ask a Question
-

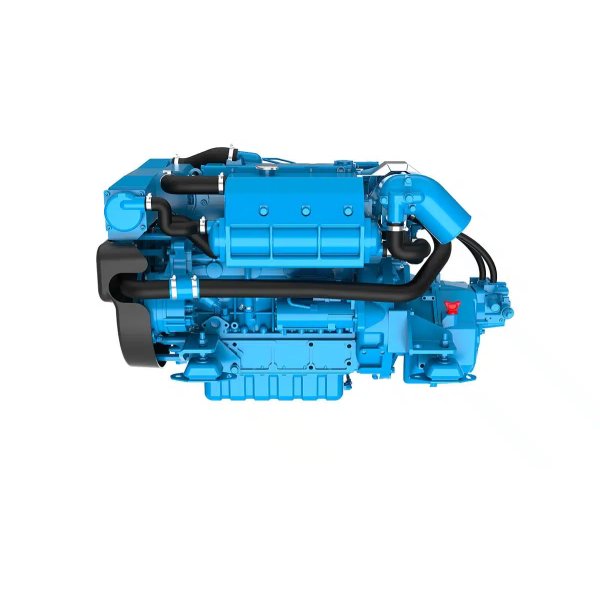

Nanni N4.115, Gearbox ZF45A, Reduction 2.03
The Nanni N4.115 is a high-performance marine engine designed for reliable operation. With advanced features and a robust design, it offers exceptional power and efficiency for various marine applications. Below are the technical specifications:
- Power at crankshaft: 84.6 kW [115 hp]
- Displacement: 3,769 l [230 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1:1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 387 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: Mechanical direct injection, SD with electronic speed control
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 378 kg [833 lbs]
- Dry weight with SD15: 450 kg [992 lbs]
Additional Information:
- Horsepower (kW): 115 (84.6)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Gearbox: ZF45A
- Reduction: 2.03
- Panel: C4
-
