SKU:
CN N4115E474
€ 35.332,42
1-2 weeks delivery time
-
+
The Nanni N4.115 engine, coupled with the ZF45-1 gearbox and a reduction ratio of 2.51, delivers strong performance and reliability for marine environments. With 115 hp at the crankshaft and a 3.769 L displacement, it offers peak torque of 387 Nm at 1600 rpm. Operating at 2600 rpm, this engine is equipped with a turbocharged, intercooled air intake system and complies with EPA marine Tier 3 emission standards, ensuring robust and efficient operation in demanding conditions.
- Description
- Ask a Question
-

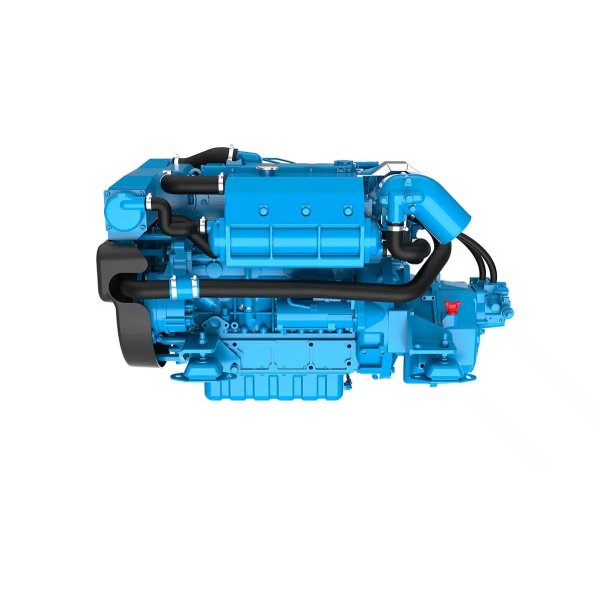

Nanni N4.115, Gearbox ZF45-1, Reduction 2.51
The Nanni N4.115 marine engine offers powerful performance and efficient fuel usage for demanding marine environments. With advanced engineering and superior torque, it's an excellent choice for boats that require reliable, high-power output. Here are the key specifications for this model.
- Power at crankshaft: 84.6 kW [115 hp]
- Displacement: 3,769 l [230 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1 : 1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 387 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: Mechanical direct injection, SD with electronic speed control
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 378 kg [833 lbs]
- Dry weight with SD15: 450 kg [992 lbs]
- Horsepower (kW): 115 (84.6)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Gearbox: ZF45-1
- Reduction: 2.51
- Panel: C4
-
