SKU:
CN N4115E464
€ 35.332,42
1-2 weeks delivery time
-
+
The Nanni N4.115 engine, paired with the ZF45-1 gearbox and a 2.20 reduction ratio, provides powerful performance for various marine applications. It has a 115 hp output at the crankshaft, with a 3.769 L displacement and a peak torque of 387 Nm at 1600 rpm. This engine operates at 2600 rpm and meets EPA marine Tier 3 emission standards. Built on a Kubota base, it features a turbocharged and intercooled air intake, ensuring both efficiency and durability for marine usage.
- Description
- Ask a Question
-

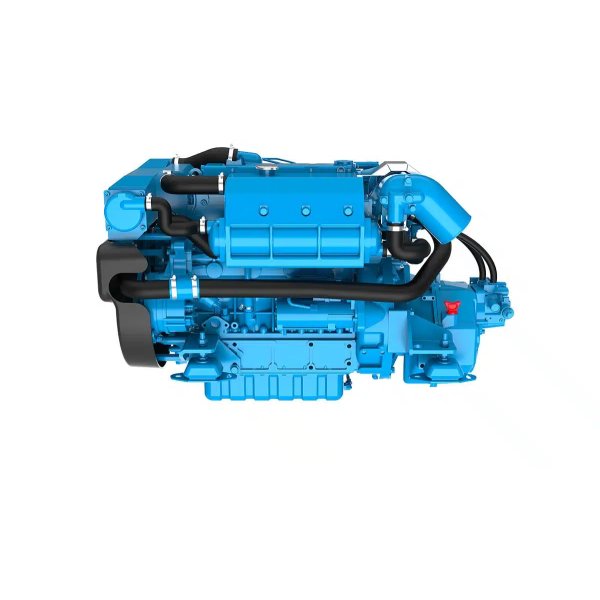

Nanni N4.115, Gearbox ZF45-1, Reduction 2.20
The Nanni N4.115 marine engine is a robust and reliable power source designed for various applications. With advanced features and efficient performance, it ensures long-lasting durability and high output. Below are the detailed specifications for this engine.
- Power at crankshaft: 84.6 kW [115 hp]
- Displacement: 3,769 l [230 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1 : 1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 387 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: Mechanical direct injection, SD with electronic speed control
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 378 kg [833 lbs]
- Dry weight with SD15: 450 kg [992 lbs]
- Horsepower (kW): 115 (84.6)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Gearbox: ZF45-1
- Reduction: 2.20
- Panel: C4
-
