SKU:
CN N4115E604
€ 33.573,13
1-2 weeks delivery time
-
+
The Nanni N4.115 with Gearbox TM93 and Reduction 2.09 is designed for marine applications requiring consistent power and reliability. With 115 hp at 2600 rpm, this 4-cylinder, 4-stroke diesel engine offers a displacement of 3.769 liters. Its turbocharged and intercooled system improves power delivery, while the closed cooling with heat exchanger maintains operational efficiency. Featuring a mechanical direct injection fuel system, the engine meets EPA Tier 3 marine emission standards and has a dry weight of 378 kg with TMC345A.
- Description
- Ask a Question
-

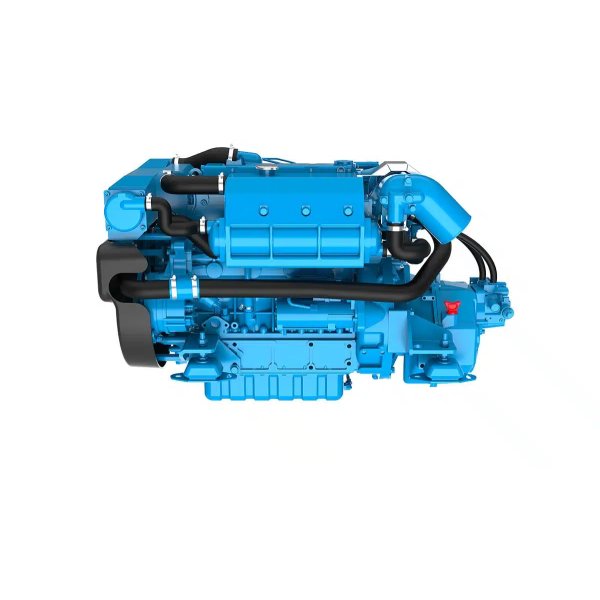

Nanni N4.115, Gearbox TM93, Reduction 2.09
The Nanni N4.115 is a high-performance marine engine designed for a variety of applications. With advanced features and robust construction, it offers optimal power and efficiency for your boating needs.
- Power at crankshaft: 84.6 kW [115 hp]
- Displacement: 3,769 l [230 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1 : 1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 387 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: Mechanical direct injection, SD with electronic speed control
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 378 kg [833 lbs]
- Dry weight with SD15: 450 kg [992 lbs]
- Horsepower (kW): 115 (84.6)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Gearbox: TM93
- Reduction: 2.09
- Panel: C4
-
