SKU:
CN N4115EH04
€ 24.781,64
1-2 weeks delivery time
-
+
The Nanni N4.115 Bobtail engine is a compact and reliable option for those in need of a high-performance engine without a gearbox. It provides 115 hp at 2600 rpm, with a 4-cylinder, 4-stroke diesel configuration and a 3.769-liter displacement. Equipped with a turbocharged and intercooled air intake system and a closed cooling system, it ensures smooth operation. The mechanical direct injection system, along with EPA marine Tier 3 emission compliance, makes it a versatile choice. The engine weighs 378 kg with TMC345A.
- Description
- Ask a Question
-

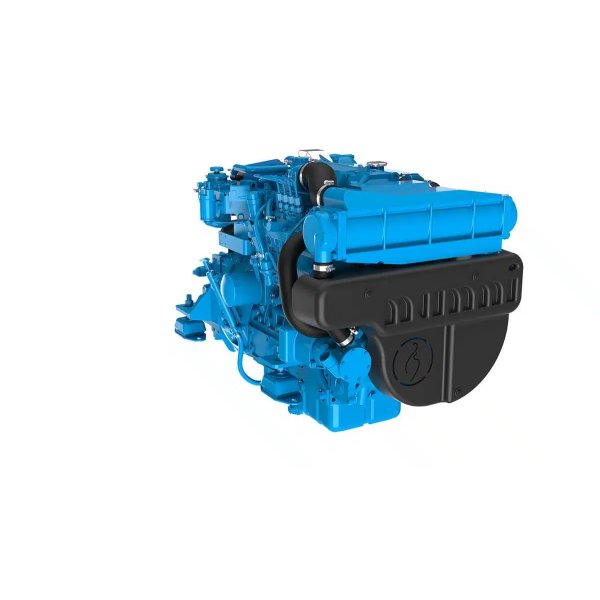

Nanni N4.115 Bobtail (HYD), No Gearbox
The Nanni N4.115 Bobtail engine is a powerful, compact option for those who need a reliable engine with no gearbox. Offering the same impressive performance features as the Nanni N4.115, it delivers power and torque for a smooth and efficient experience.
- Power at crankshaft: 84.6 kW [115 hp]
- Displacement: 3,769 l [230 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 100 x 120 mm [3.94 x 4.72 in]
- Compression ratio: 19.1 : 1
- Rated speed: 2600 rpm
- Idle speed: 825 rpm
- Peak torque: 387 Nm
- Peak torque speed: 1600 rpm
- Engine base: Kubota
- Fuel system: Mechanical direct injection, SD with electronic speed control
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M4
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 378 kg [833 lbs]
- Dry weight with SD15: 450 kg [992 lbs]
- Horsepower (kW): 115 (84.6)
- Rpm: 2600
- Cylinders/cm³: 4 / 3769
- Panel: C4
-
