SKU:
CN N3030E182
€ 12.674,48
1-2 weeks delivery time
-
+
The Nanni N3.30 engine with TMC40 gearbox and 2.60 reduction offers high efficiency and reliable performance for marine applications. With a 21.3 kW \[29 hp] output, peak torque of 64 Nm at 2600 rpm, and rated speed of 3600 rpm, it ensures smooth operation while meeting EPA marine Tier 3 emissions standards. The engine weighs 145 kg with the gearbox.
- Description
- Ask a Question
-

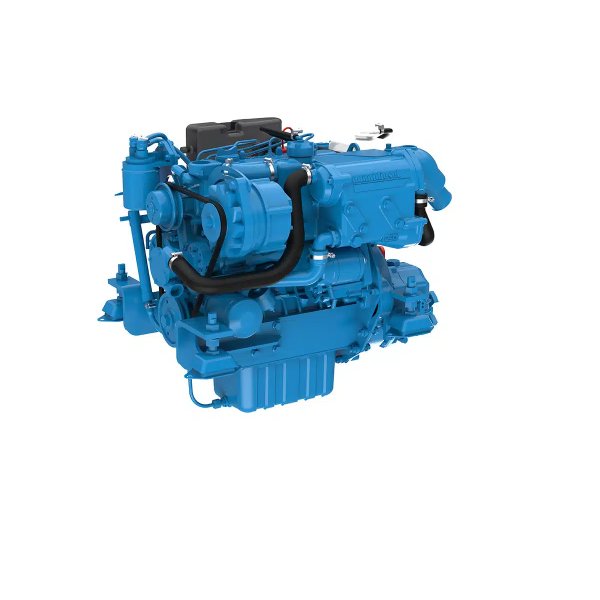

Nanni N3.30, Gearbox TMC40, Reduction 2.60
Introducing the Nanni N3.30, a compact and powerful marine engine designed for performance and reliability in harsh conditions. Perfect for a variety of applications, this engine delivers the strength and efficiency needed for a smooth sailing experience.
- Power at crankshaft: 21.3 kW [29 hp]
- Displacement: 1,123 l [69 in3]
- Configuration: 3 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 78 x 78.4 mm [3.07 x 3.09 in]
- Compression ratio: 24 : 1
- Rated speed: 3600 rpm
- Idle speed: 930 rpm
- Peak torque: 64 Nm
- Peak torque speed: 2600 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry Weight with TMC40: 145 kg [319 lbs]
- With Sail Drive SP60: 181 kg [399 lbs]
- Horsepower (kW): 29 (21.3)
- Rpm: 3600
- Cylinders/cm³: 3 / 1123
- Gearbox: TMC40
- Reduction: 2.60
- Panel: A4
-
