SKU:
CN N3030E172
€ 12.674,48
1-2 weeks delivery time
-
+
The Nanni N3.30 engine with TMC40 gearbox and 2.00 reduction delivers powerful and efficient marine propulsion. With 21.3 kW \[29 hp] output, a peak torque of 64 Nm at 2600 rpm, and a rated speed of 3600 rpm, this engine meets EPA marine Tier 3 emissions standards. Weighing 145 kg with TMC40, it offers superior performance in various marine environments.
- Description
- Ask a Question
-

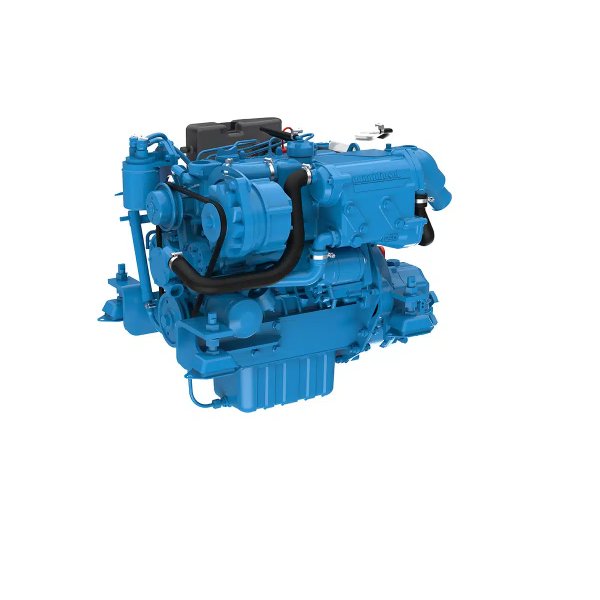

Nanni N3.30, Gearbox TMC40, Reduction 2.00
The Nanni N3.30 engine with TMC40 gearbox is ideal for high-end marine propulsion systems. It provides enhanced torque and power delivery for improved performance. Key details include:
- Power at crankshaft: 21.3 kW [29 hp]
- Displacement: 1,123 l [69 in³]
- Configuration: 3 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 78 x 78.4 mm [3.07 x 3.09 in]
- Compression ratio: 24:1
- Rated speed: 3600 rpm
- Idle speed: 930 rpm
- Peak torque: 64 Nm
- Peak torque speed: 2600 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC40: 145 kg [319 lbs]
- Dry weight with Sail Drive SP60: 181 kg [399 lbs]
- Gearbox: TMC40
- Reduction: 2.00
- Panel: A4
-
