SKU:
CN N3030E002
€ 11.798,39
1-2 weeks delivery time
-
+
The Nanni N3.30 Bobtail engine provides a robust solution for marine propulsion. Offering 21.3 kW \[29 hp] and a peak torque of 64 Nm at 2600 rpm, the 4-cylinder, 4-stroke diesel engine delivers reliable performance. With a rated speed of 3600 rpm, EPA marine Tier 3 emissions compliance, and a dry weight of 145 kg with TMC40, this engine is ideal for a range of applications.
- Description
- Ask a Question
-

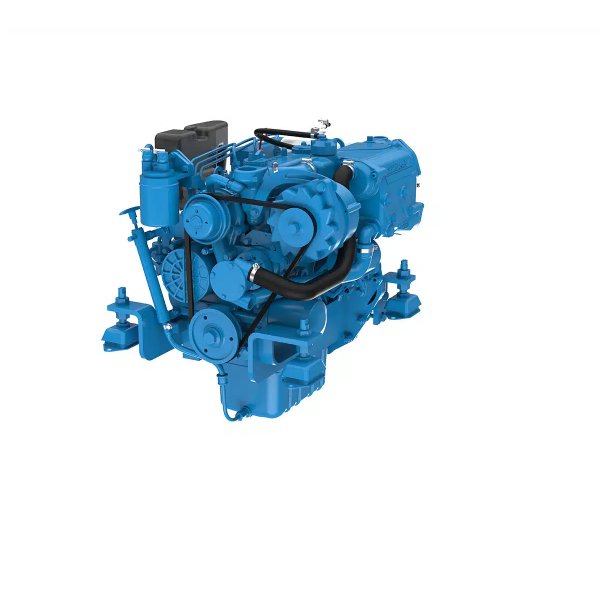

Nanni N3.30 Bobtail, No Gearbox
The Nanni N3.30 Bobtail is a reliable and efficient engine designed for marine applications. Here are the key specifications and features:
- Power at crankshaft: 21.3 kW [29 hp]
- Displacement: 1,123 l [69 in³]
- Configuration: 3 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 78 x 78.4 mm [3.07 x 3.09 in]
- Compression ratio: 24:1
- Rated speed: 3600 rpm
- Idle speed: 930 rpm
- Peak torque: 64 Nm
- Peak torque speed: 2600 rpm
- Engine base: Kubota
- Fuel system: Mechanical indirect injection
- Air intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC40: 145 kg [319 lbs]
- Dry weight with Sail Drive SP60: 181 kg [399 lbs]
Additional Specifications:
- Horsepower (kW): 29 (21.3)
- RPM: 3600
- Cylinders/cm³: 3 / 1123
- Panel: A4
-
