SKU:
CN N3021ST42
€ 15.101,87
1-2 weeks delivery time
-
+
The Nanni N3.21 with Saildrive SP60 offers a compact solution for marine vessels. With a 14.61 kW \[19.6 hp] 3-cylinder, 4-stroke diesel engine, it provides reliable performance without the need for a traditional gearbox. With a rated speed of 3600 rpm and a peak torque of 44.1 Nm at 2450 rpm, it ensures smooth operation, with a dry weight of 142 kg with the Saildrive.
- Description
- Ask a Question
-

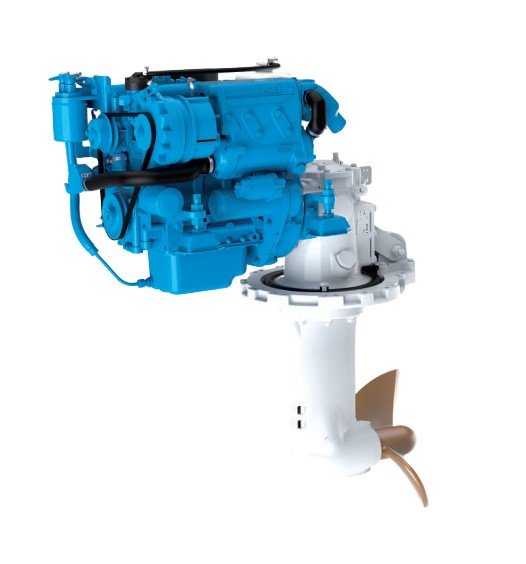

Nanni N3.21 Saildrive SP60, No Gearbox
The Nanni N3.21 with Saildrive SP60 provides reliable performance for marine vessels without the need for a traditional gearbox. Below are the specifications for this model:
- Power at crankshaft: 14.61 kW [19.6 hp]
- Displacement: 0.719 l [44 in3]
- Configuration: 3 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 67 x 68 mm [2.64 x 2.68 in]
- Compression ratio: 23.5 : 1
- Rated speed: 3600 rpm
- Idle speed: 1050 rpm
- Peak torque: 44.1 Nm
- Peak torque speed: 2450 rpm
- Engine base: Kubota
- Fuel system: mechanical Indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 70 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with Sail Drive SP60: 142 kg [313 lbs]
- Horsepower (kW): 21 (15.4)
- Rpm: 3600
- Cylinders/cm³: 3 / 719
- Reduction: 2.38
- Panel: A4
-
