SKU:
CN N3021E172
€ 10.393,54
1-2 weeks delivery time
-
+
The Nanni N3.21 engine with TMC40 gearbox and 2.00 reduction offers reliable marine propulsion with a 14.61 kW \[19.6 hp] output. Featuring a 4-stroke diesel engine with 3 cylinders, it has a displacement of 0.719 l and a rated speed of 3600 rpm. With a peak torque of 44.1 Nm at 2450 rpm, it meets EPA marine Tier 3 emissions standards and weighs 106 kg with the gearbox.
- Description
- Ask a Question
-

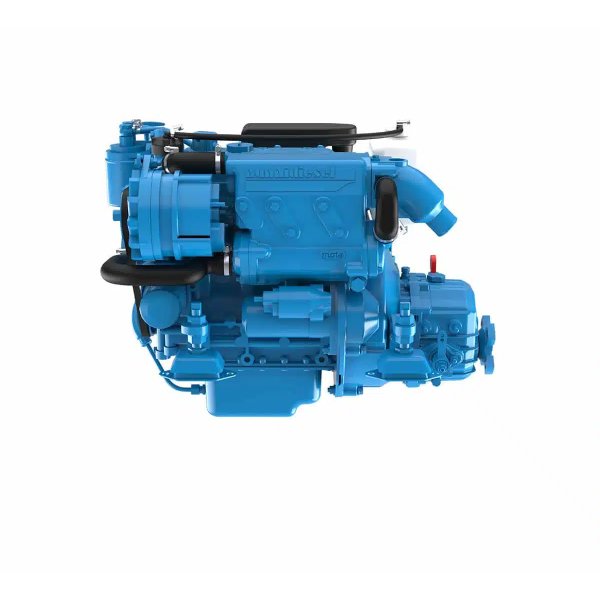

Nanni N3.21, Gearbox TMC40, Reduction 2.00
The Nanni N3.21 engine with TMC40 gearbox offers a perfect solution for marine propulsion. Here are the essential specifications:
- Power at crankshaft: 14.61 kW [19.6 hp]
- Displacement: 0.719 l [44 in³]
- Configuration: 3 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 67 x 68 mm [2.64 x 2.68 in]
- Compression ratio: 23.5 : 1
- Rated speed: 3600 rpm
- Idle speed: 1050 rpm
- Peak torque: 44.1 Nm
- Peak torque speed: 2450 rpm
- Engine base: Kubota
- Fuel system: mechanical Indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 70 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC40: 106 kg [233 lbs]
- Dry weight with Sail Drive SP60: 142 kg [313 lbs]
- Horsepower: 21 (15.4 kW)
- Rpm: 3600
- Cylinders/cm³: 3 / 719
- Gearbox: TMC40
- Reduction: 2.00
- Panel: A4
-
