The Nanni N2.14 with TMC40 gearbox and 2.60 reduction ratio provides a powerful and efficient solution for marine applications, delivering 10.3 kW (14 hp) from a 2-cylinder inline engine. It features mechanical indirect injection, closed cooling, and natural air intake. This engine meets EPA Marine Tier 3 standards and provides a peak torque of 29.7 Nm at 2600 rpm, making it suitable for a wide range of boats.
- Description
- Ask a Question
-

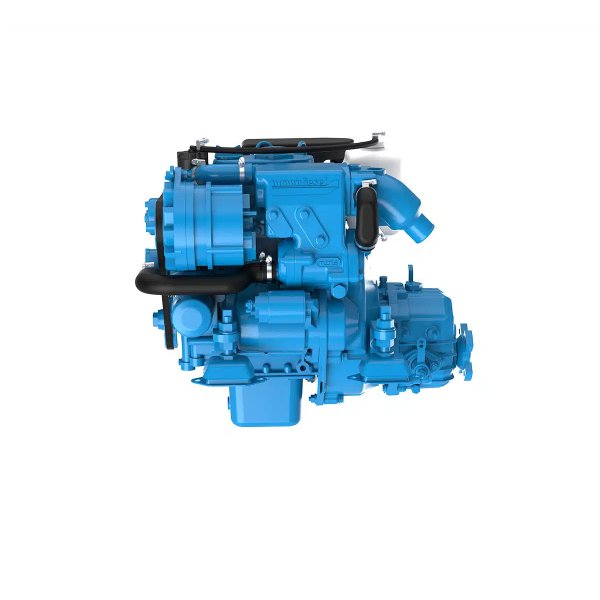

Nanni N2.14, Gearbox TMC40, Reduction 2.60
The Nanni N2.14 with TMC40 gearbox and 2.60 reduction ratio delivers a reliable and efficient solution for marine applications. Here are the key specifications:
- Power at crankshaft: 10.3 kW [14 hp]
- Displacement: 0.479 l [29 in3]
- Configuration: 2 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 67 x 68 mm [2.64 x 2.68 in]
- Compression ratio: 23.5 : 1
- Rated speed: 3600 rpm
- Idle speed: 1050 rpm
- Peak torque: 29.7 Nm
- Peak torque speed: 2600 rpm
- Engine base: Kubota
- Fuel system: Mechanical Indirect injection
- Air intake: Natural
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 70 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC40: 92 kg [202 lbs]
- With Sail Drive SP60: 128 kg [282 lbs]
- Horsepower: 14 (10.3 kW)
- Rpm: 3600
- Cylinders: 2 / 479 cm³
- Gearbox: TMC40
- Reduction: 2.60
- Panel: A4
-
