SKU:
CN N2014E172
€ 9.839,65
1-2 weeks delivery time
-
+
The Nanni N2.14 with Gearbox TMC40 provides 10.3 kW (14 hp) from a 2-cylinder inline configuration, operating at a rated speed of 3600 rpm. It features mechanical indirect injection, natural air intake, and closed cooling, delivering peak torque of 29.7 Nm at 2600 rpm. This engine meets EPA Marine Tier 3 emission standards, making it an ideal choice for small to medium marine applications with a compact design and efficient performance.
- Description
- Ask a Question
-

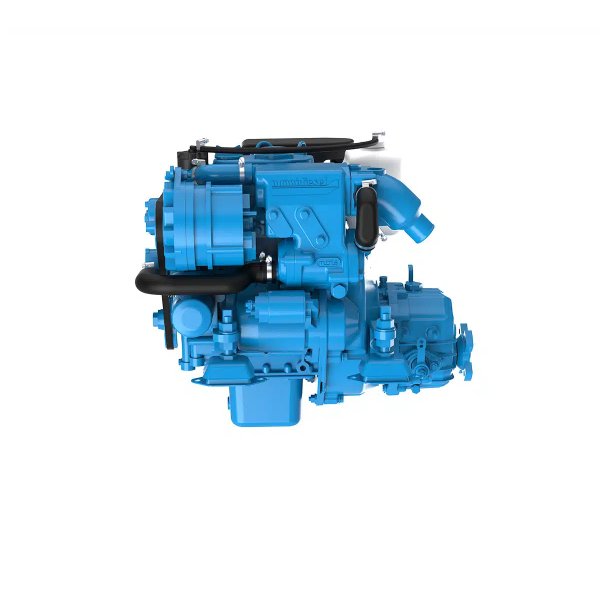

Nanni N2.14, Gearbox TMC40, Reduction 2.00
The Nanni N2.14 with Gearbox TMC40 is another excellent choice for marine engines, designed to deliver improved performance with a solid and efficient design. Here are the main features:
- Power at crankshaft: 10.3 kW [14 hp]
- Displacement: 0.479 l [29 in³]
- Configuration: 2 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 67 x 68 mm [2.64 x 2.68 in]
- Compression ratio: 23.5 : 1
- Rated speed: 3600 rpm
- Idle speed: 1050 rpm
- Peak torque: 29.7 Nm
- Peak torque speed: 2600 rpm
- Engine base: Kubota
- Fuel system: mechanical indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 70 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC40: 92 kg [202 lbs]
- With Sail Drive SP60: 128 kg [282 lbs]
- Horsepower (kW): 14 (10.3)
- RPM: 3600
- Cylinders/cm³: 2 / 479
- Gearbox: TMC40
- Reduction: 2.00
- Panel: A4
-
