SKU:
CN N2010E181
€ 7.990,19
1-2 weeks delivery time
-
+

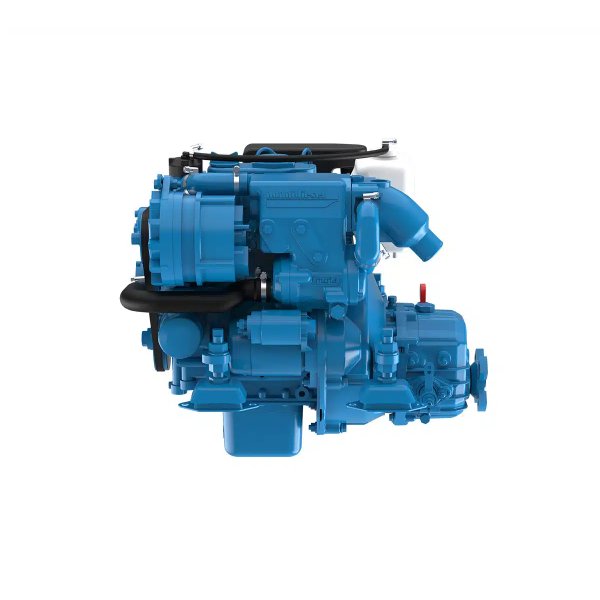

The Nanni N2.10 engine with TMC40 gearbox and a 2.60 reduction ratio provides reliable marine power with 7.36 kW (10 hp) from a 2-cylinder inline configuration. It is designed with mechanical indirect injection and natural air intake. The engine meets EPA Marine Tier 3 standards and is well-suited for various marine setups with a compact, efficient design and a peak torque of 24.4 Nm at 2600 rpm.
- Description
- Ask a Question
-
Nanni N2.10, Gearbox TMC40, Reduction 2.60
The Nanni N2.10 with a TMC40 gearbox and a reduction ratio of 2.60 is another variation designed for high-efficiency performance in marine applications. Below are the key details:
- Power at crankshaft: 7.36 kW [10 hp]
- Displacement: 0.479 l [29 in3]
- Configuration: 2 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 67 x 68 mm [2.64 x 2.68 in]
- Compression ratio: 23.5 : 1
- Rated speed: 3000 rpm
- Idle speed: 1050 rpm
- Peak torque: 24.4 Nm
- Peak torque speed: 2600 rpm
- Engine base: Kubota
- Fuel system: mechanical Indirect injection
- Air intake: natural
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 40 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC40: 87 kg [191 lbs]
- Dry weight with Sail Drive SP60: 123 kg [271 lbs]
- Horsepower (kW): 10 (7.36)
- Rpm: 3000
- Cylinders/cm³: 2 / 479
- Gearbox: TMC40
- Reduction: 2.60
- Panel: ECO
-
