SKU:
CN T6300ZTR5
€ 61.223,73
1-2 weeks delivery time
-
+
The Nanni Engine Z6.300 Ready For Bravo (Mono or Right), without a gearbox or reduction, offers powerful performance for marine vessels. With a displacement of 4.2 liters and 6 cylinders in line, this engine delivers 275 hp at 3600 rpm. It features a turbocharged, intercooled air intake system, a closed cooling system, and a peak torque of 687 Nm at 2400 rpm. The engine’s dry weight with Bravo X Three is 552 kg, and it adheres to RCD 94/25/EC GFO2 emission standards, ensuring reliable operation in challenging marine environments.
- Description
- Ask a Question
-

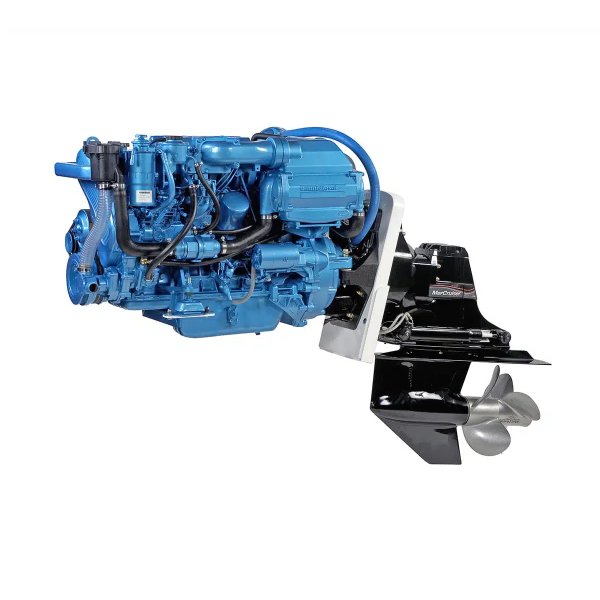

Nanni Engine Z6.300 Ready For Bravo (Mono Or Right), No Gearbox, No Reduction
Introducing the Nanni Engine Z6.300, a robust and reliable 4-stroke diesel engine ideal for marine applications. This engine is designed for high performance with a focus on efficiency and durability. It provides excellent power output and torque, making it suitable for a variety of marine vessels.
- Power at crankshaft: 202.4 kW [275 hp]
- Displacement: 4,200 l [254 in3]
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 100 mm [3.78 x 3.94 in]
- Compression ratio: 15.7 : 1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 687 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection mechanically controlled
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: RCD 94/25/EC GFO2
- Dry weight with Bravo X Three: 552 kg [1217 lbs]
Additional Specifications
- Horsepower (kW): 275 (191.4)
- RPM: 3600
- Cylinders/cm³: 6 / 4163
- Gearbox: None
- Reduction: None
- Panel: C4 IS
-
