SKU:
CN T6300ZBA5
€ 63.211,67
1-2 weeks delivery time
-
+
The Nanni Engine Z6.300 is a powerful 4-stroke diesel engine designed for marine applications, offering 202.4 kW (275 hp) at the crankshaft. With a displacement of 4.2 liters, this engine features 6 cylinders in line and a turbocharged, intercooled air intake system. It operates at a rated speed of 3600 rpm, delivers peak torque of 687 Nm at 2400 rpm, and is equipped with a closed cooling system. The engine’s dry weight is 552 kg, and it adheres to the RCD 94/25/EC GFO2 emission standards, making it suitable for demanding marine environments.
- Description
- Ask a Question
-

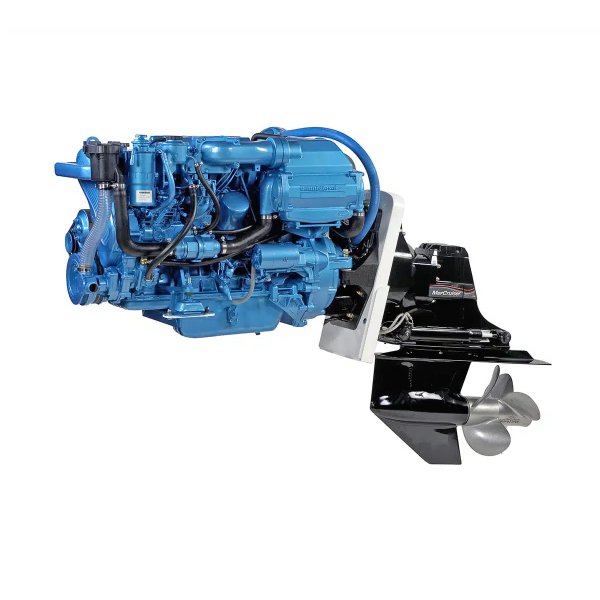

Nanni Engine Z6.300 Ready For Bravo (Left), No Gearbox, No Reduction
The Nanni Engine Z6.300 is a robust and powerful 4-stroke diesel engine designed to deliver superior performance. Here are the key specifications:
- Power at crankshaft: 202.4 kW [275 hp]
- Displacement: 4,200 l [254 in3]
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 100 mm [3.78 x 3.94 in]
- Compression ratio: 15.7 : 1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 687 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: RCD 94/25/EC GFO2
- Dry weight with Bravo X Three: 552 kg [1217 lbs]
This engine is designed for high performance and durability in demanding conditions, offering a combination of power, reliability, and efficiency. The Z6.300 is well-suited for various marine applications, ensuring optimal operation in tough environments.
Technical Specifications
The Nanni Engine Z6.300 is engineered with precision and power. Below are the essential technical details:
- Horsepower (kW): 275 (191.4)
- RPM: 3600
- Cylinders: 6 / 4163
- Gearbox: Not included
- Reduction: None
- Panel: C4 IS
With its advanced engineering, the Z6.300 delivers excellent torque and reliability. This engine is a great choice for those seeking power without the complexities of a gearbox or reduction system, offering simplicity in installation and maintenance.
-
