SKU:
CN T6300ZTM5
€ 75.192,32
1-2 weeks delivery time
-
+
The Nanni Engine Z6.300 Mono or Right, paired with the Bravo 3 gearbox and a 1.81 reduction, ensures high performance for marine applications. This 275 hp engine operates at a rated speed of 3600 rpm and provides peak torque of 687 Nm at 2400 rpm. The engine features a 4.2-liter displacement, 6 cylinders in line, and a turbocharged, intercooled air intake system. It is designed to be reliable and efficient in demanding conditions, with a dry weight of 552 kg and compliance with RCD 94/25/EC GFO2 emission standards.
- Description
- Ask a Question
-

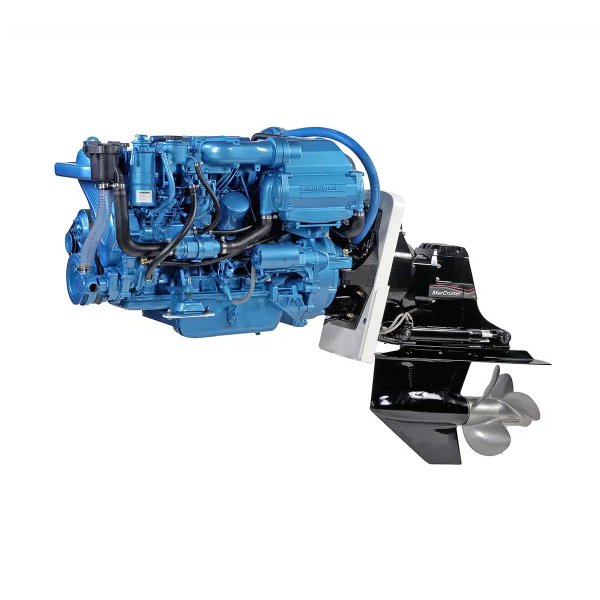

Nanni Engine Z6.300 Mono Or Right, Gearbox Bravo 3, Reduction 1.81
The Nanni Engine Z6.300 is a high-performance, marine engine designed for durability and power, offering impressive specifications that ensure reliability in tough marine environments. Below are the key features:
- Power at crankshaft: 202.4 kW [275 hp]
- Displacement: 4,200 l [254 in3]
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 100 mm [3.78 x 3.94 in]
- Compression ratio: 15.7 : 1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 687 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: RCD 94/25/EC GFO2
- Dry weight with Bravo X Three: 552 kg [1217 lbs]
Performance Specifications
The Nanni Engine Z6.300 offers remarkable performance characteristics for marine applications. Below are additional specifications to consider:
- Horsepower (kW): 275 (191.4)
- Rpm: 3600
- Cylinders/cm³: 6 / 4163
- Gearbox: BRAVO 3
- Reduction: 1.81
- Panel: C4 IS
-
