SKU:
CN T6300ZTG5
€ 74.377,86
1-2 weeks delivery time
-
+
The Nanni Engine Z6.300 Mono or Right, with the Bravo 2 gearbox and a 1.81 reduction, is engineered for high performance in demanding marine conditions. This engine provides 275 hp at 3600 rpm, with a displacement of 4.2 liters and 6 cylinders in line. The turbocharged, intercooled air intake system ensures optimal fuel efficiency and performance. The engine’s dry weight with the Bravo X Three is 552 kg, and it adheres to RCD 94/25/EC GFO2 emission standards, offering a reliable and durable solution for marine propulsion.
- Description
- Ask a Question
-

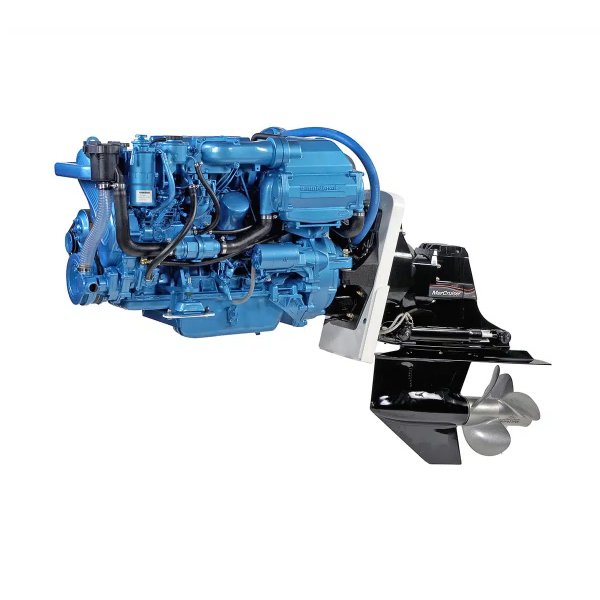

Nanni Engine Z6.300 Mono Or Right, Gearbox Bravo 2, Reduction 1.81
The Nanni Engine Z6.300 is a powerful and efficient 4-stroke diesel engine designed for high performance. With its impressive specifications and reliability, it is an excellent choice for those in need of a high-powered engine with advanced features. Here are the key details:
- Power at crankshaft: 202.4 kW (275 hp)
- Displacement: 4,200 l (254 in³)
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 100 mm (3.78 x 3.94 in)
- Compression ratio: 15.7:1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 687 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: RCD 94/25/EC GFO2
- Dry weight with Bravo X Three: 552 kg (1217 lbs)
Horsepower and Performance
The Nanni Engine Z6.300 delivers an impressive 275 hp at 3600 rpm, making it an excellent choice for demanding marine applications. Its power-to-weight ratio, combined with a reliable gearbox and high torque, ensures smooth operation in various conditions.
- Horsepower: 275 (191.4 kW)
- Rpm: 3600
- Cylinders: 6 / 4163 cm³
- Gearbox: BRAVO 2
- Reduction: 1.81
- Panel: C4 IS
-
