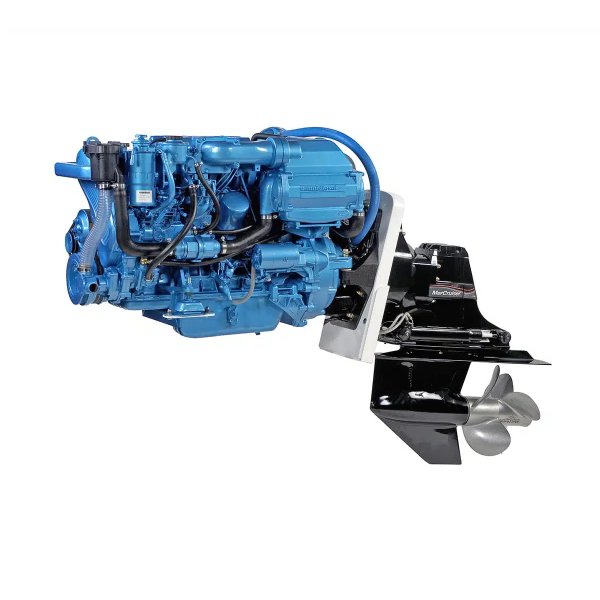

Nanni Engine Z6.300 Left, Gearbox Bravo 3, Reduction 1.81

SKU: CN T6300ZBM5

€ 75.216,52

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine Z6.300 Left, coupled with the Bravo 3 gearbox and a 1.81 reduction, delivers powerful performance in marine applications. The engine features 6 cylinders in line, a 4.2-liter displacement, and turbocharged, intercooled air intake. With a rated speed of 3600 rpm and peak torque of 687 Nm at 2400 rpm, this setup offers excellent reliability and power. The engine's dry weight with the Bravo X Three is 552 kg, and it complies with RCD 94/25/EC GFO2 emission standards, ensuring long-lasting performance in tough environments.

Description
Ask a Question

Nanni Engine Z6.300 Left, Gearbox Bravo 3, Reduction 1.81

The Nanni Engine Z6.300 Left is a high-performance marine engine designed to provide reliable and efficient power for various marine applications. Coupled with the Bravo 3 gearbox and a 1.81 reduction, this engine is perfect for those seeking durability and top performance at sea.
- Power at crankshaft: 202.4 kW [275 hp]
- Displacement: 4,200 l [254 in3]
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 100 mm [3.78 x 3.94 in]
- Compression ratio: 15.7 : 1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 687 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: RCD 94/25/EC GFO2
- Dry weight with Bravo X Three: 552 kg [1217 lbs]
Additional Specifications

This engine also comes with further specifications that enhance its performance and reliability:
- Horsepower: 275 hp (191.4 kW)
- RPM: 3600
- Cylinders: 6 / 4163 cm³
- Gearbox: Bravo 3
- Reduction ratio: 1.81
- Panel: C4 IS
