SKU:
CN T6300ZBG5
€ 74.401,91
1-2 weeks delivery time
-
+
The Nanni Engine Z6.300 Left is a 275 hp marine engine with a 4.2-liter displacement, featuring 6 cylinders in line. This 4-stroke diesel engine operates at 3600 rpm and provides a peak torque of 687 Nm at 2400 rpm. It is equipped with a turbocharged, intercooled air intake system, closed cooling with a heat exchanger, and is based on a Toyota engine. The dry weight of the engine with Bravo X Three is 552 kg, and it complies with emission standards RCD 94/25/EC GFO2, ensuring durability and high performance in marine conditions.
- Description
- Ask a Question
-

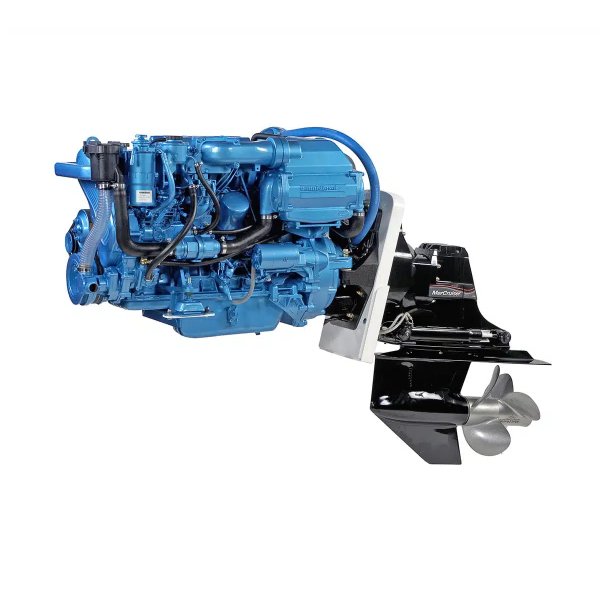

Nanni Engine Z6.300 Left
The Nanni Engine Z6.300 Left is a powerful marine engine designed for high performance. Here are the technical specifications:
- Power at crankshaft: 202.4 kW (275 hp)
- Displacement: 4,200 l (254 in³)
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 100 mm (3.78 x 3.94 in)
- Compression ratio: 15.7 : 1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 687 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection, mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: RCD 94/25/EC GFO2
- Dry weight with Bravo X Three: 552 kg (1217 lbs)
Gearbox Bravo 2
The Bravo 2 gearbox is a reliable and efficient choice for marine propulsion systems. Here are its key features:
- Horsepower: 275 hp (191.4 kW)
- RPM: 3600
- Cylinders / Volume: 6 cylinders, 4163 cm³
- Gearbox: Bravo 2
- Reduction ratio: 1.81
- Panel: C4 IS
-
