SKU:
CN T4270ZTR5
€ 53.378,30
1-2 weeks delivery time
-
+

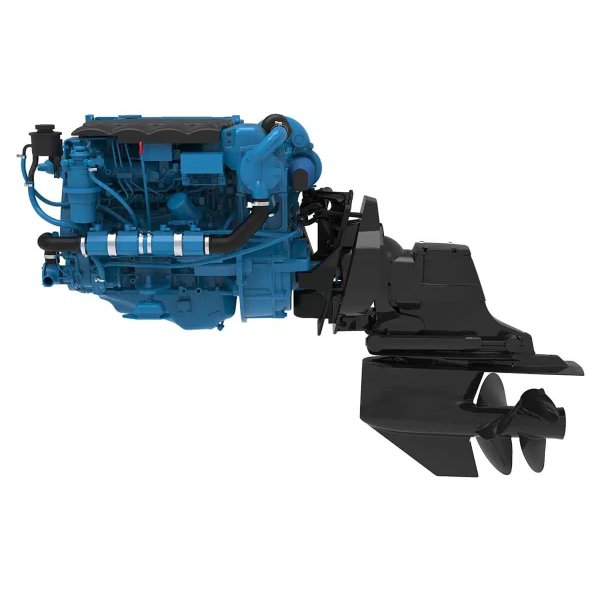

The Nanni Engine Z4.270 Ready for Bravo (Mono or Right) without a gearbox or reduction is a powerful marine engine designed for reliability and performance. With 265 hp (194.9 kW) and a rated speed of 3600 rpm, it features a turbocharged and intercooled air intake system, a closed cooling system, and direct injection, making it an excellent option for marine applications.
- Description
- Ask a Question
-
Nanni Engine Z4.270 Ready For Bravo (Mono Or Right), No Gearbox, No Reduction
The Nanni Engine Z4.270 offers impressive power and reliability, making it an ideal choice for marine applications. Here's a quick overview of its specifications:
- Power at crankshaft: 194.9 kW [265 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel engine
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 660 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged and intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU, EPA marine Tier 3 BSO2
- Dry weight with Bravo X Three: 476 kg [1049.4 lbs]
Additional Technical Specifications
- Horsepower: 265 hp (194.9 kW)
- RPM: 3600
- Cylinders/Displacement: 4 cylinders / 2982 cm³
- Gearbox: None
- Reduction: None
- Panel: Si4
-
