SKU:
CN T4270ZBA5
€ 51.203,06
1-2 weeks delivery time
-
+
The Nanni Engine Z4.270 Ready for Bravo (Left) is a high-performance 4-stroke diesel engine, designed for marine applications. It delivers 265 hp (194.9 kW) and features a turbocharged, intercooled air intake system, along with a closed cooling system. This engine operates at a rated speed of 3600 rpm and offers excellent torque and reliability for demanding environments.
- Description
- Ask a Question
-

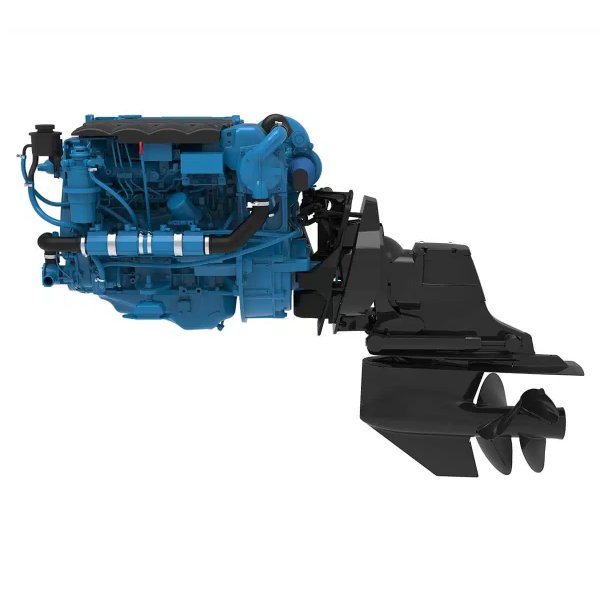

Nanni Engine Z4.270 Ready For Bravo (Left), No Gearbox, No Reduction
Introducing the Nanni Engine Z4.270, a powerful and reliable engine built for marine applications. This engine is designed for optimal performance and durability, featuring a turbocharged and intercooled air intake system. Panel is Si4. Below are the technical specifications and features of the engine:
- Power at crankshaft: 194.9 kW [265 hp]
- Displacement: 2,982 l [182 in³]
- Engine configuration: 4 cylinders in line
- Engine type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 660 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU, EPA marine Tier 3 BSO2
- Dry weight with Bravo X Three: 476 kg [1049.4 lbs]
With a robust engine design and impressive torque, the Nanni Engine Z4.270 is engineered to handle demanding marine environments, offering excellent reliability and performance.
-
