SKU:
CN T4270ZTM5
€ 65.885,30
1-2 weeks delivery time
-
+
The Nanni Engine Z4.270 Mono or Right is a 4-stroke diesel engine built for superior performance in marine applications. With 265 hp (194.9 kW) and a turbocharged, intercooled air intake system, it operates at a rated speed of 3600 rpm. This engine is engineered for durability and efficiency, offering a high level of reliability for demanding marine conditions.
- Description
- Ask a Question
-

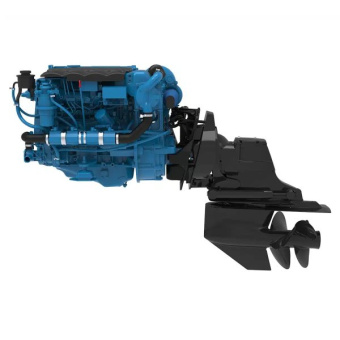

Nanni Engine Z4.270 Mono Or Right
Introducing the powerful and efficient Nanni Engine Z4.270 Mono Or Right, a 4-stroke diesel engine designed for superior performance. This engine offers exceptional reliability and durability, making it a perfect choice for various marine applications.
- Power at crankshaft: 194.9 kW [265 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 660 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high-pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU, EPA marine Tier 3 BSO2
- Dry weight with Bravo X Three: 476 kg [1049.4 lbs]
Gearbox Bravo 3
The Bravo 3 gearbox is a high-performance marine drive system, known for its reliability and durability. It's designed for maximum efficiency in challenging marine environments.
- Gearbox: Bravo 3
- Reduction: 1.81
Engine Specifications
Here's a quick overview of the key specifications for the Nanni Engine Z4.270 Mono Or Right, optimized for outstanding performance.
- Horsepower (kW): 265 (194.9)
- RPM: 3600
- Cylinders / cm³: 4 / 2982
- Gearbox: Bravo 3
- Reduction: 1.81
- Panel: Si4
-
