SKU:
CN T4270ZTG5
€ 65.035,94
1-2 weeks delivery time
-
+
The Nanni Engine Z4.270 Mono or Right with a Bravo 2 gearbox and a 1.81 reduction ratio is designed for marine applications, providing reliable and efficient performance. This engine offers 265 hp (194.9 kW) at 3600 rpm, with a turbocharged and intercooled air intake system, a closed cooling system, and a direct injection fuel system, making it an excellent choice for marine environments.
- Description
- Ask a Question
-

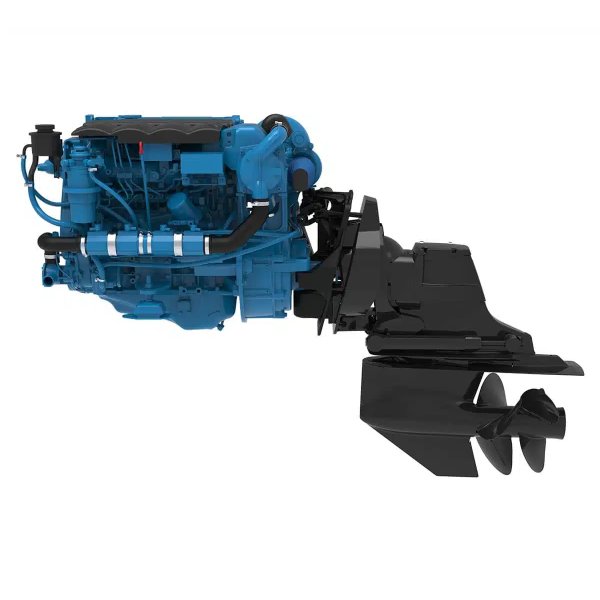

Nanni Engine Z4.270 Mono Or Right, Gearbox Bravo 2, Reduction 1.81
Introducing the Nanni Engine Z4.270 Mono or Right with a Bravo 2 gearbox and 1.81 reduction ratio. This engine is designed for marine applications, offering outstanding performance and reliability. Here's a closer look at its key features:
- Power at crankshaft: 194.9 kW (265 hp)
- Displacement: 2,982 l (182 in³)
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm (3.78 x 4.06 in)
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 660 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU, EPA marine Tier 3, BSO2
- Dry Weight with Bravo X Three: 476 kg (1049.4 lbs)
Key Engine Specifications
- Horsepower: 265 hp (194.9 kW)
- RPM: 3600
- Cylinders: 4 cylinders / 2982 cm³
- Gearbox: BRAVO 2
- Reduction: 1.81
- Panel: Si4
-
