SKU:
CN T4270ZBM5
€ 63.707,25
1-2 weeks delivery time
-
+
The Nanni Engine Z4.270 Left, paired with a Bravo 3 gearbox and a 1.81 reduction ratio, is a powerful 4-stroke diesel engine ideal for marine applications. It produces 265 hp (194.9 kW) at a rated speed of 3600 rpm, offering excellent performance, torque, and durability, with features like turbocharging, intercooled air intake, and a closed cooling system.
- Description
- Ask a Question
-

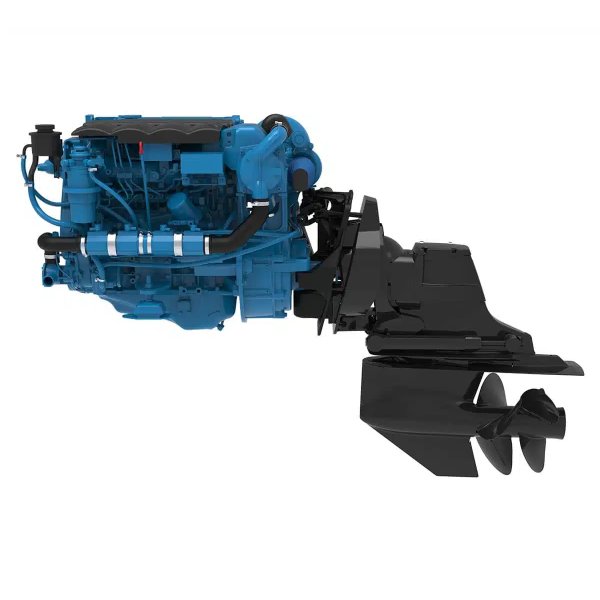

Nanni Engine Z4.270 Left, Gearbox Bravo 3, Reduction 1.81
This engine is a powerful 4-stroke diesel model, offering impressive performance and efficiency. Below are the key specifications:
- Power at crankshaft: 194.9 kW [265 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 660 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: direct injection, high pressure common rail electronically controlled
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, RCD 2013/53/EU, EPA marine Tier 3, BSO2
- Dry Weight with Bravo X Three: 476 kg [1049.4 lbs]
-
Ask a Question
