SKU:
CN T4230ZTR5
€ 52.837,52
1-2 weeks delivery time
-
+
The Nanni Engine Z4.230 is a powerful and efficient 4-stroke diesel engine, offering 230 hp (169.1 kW) from its 2,982 cm³ displacement. With a turbocharged and intercooled air intake system, it operates smoothly at a rated speed of 3600 rpm and has a peak torque of 569.4 Nm at 2000 rpm. This engine complies with various emission standards, including IMO Annex VI and EPA Marine Tier 3, making it a reliable choice for marine applications. It is designed without a gearbox or reduction, making it suitable for configurations like the Bravo X Three.
- Description
- Ask a Question
-

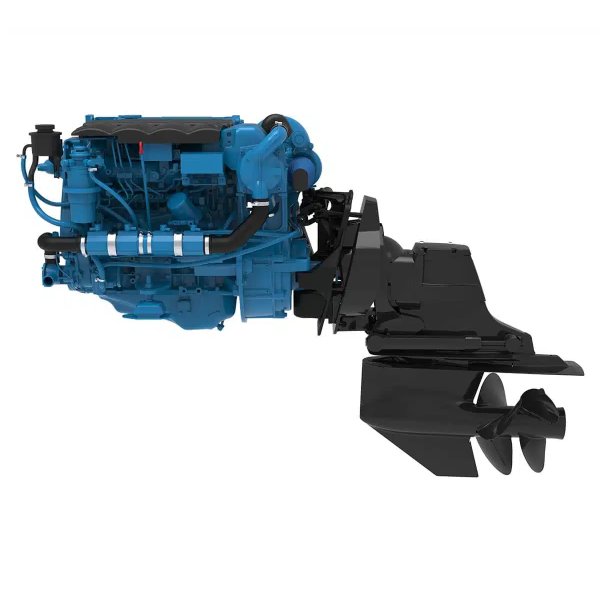

Nanni Engine Z4.230 Ready For Bravo (Mono Or Right), No Gearbox, No Reduction
The Nanni Engine Z4.230 is a robust and high-performing marine engine, designed to deliver optimal power and efficiency. Perfect for various marine applications, this engine ensures superior performance and reliability.
- Power at crankshaft: 169.1 kW [230 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel engine
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 569.4 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry weight with Bravo X Three: 476 kg [1049.4 lbs]
- Horsepower: 230 (169.2 kW)
- Rpm: 3600
- Cylinders / displacement: 4 cylinders, 2982 cm³
- Gearbox: None
- Reduction: None
- Panel: Si4
-
