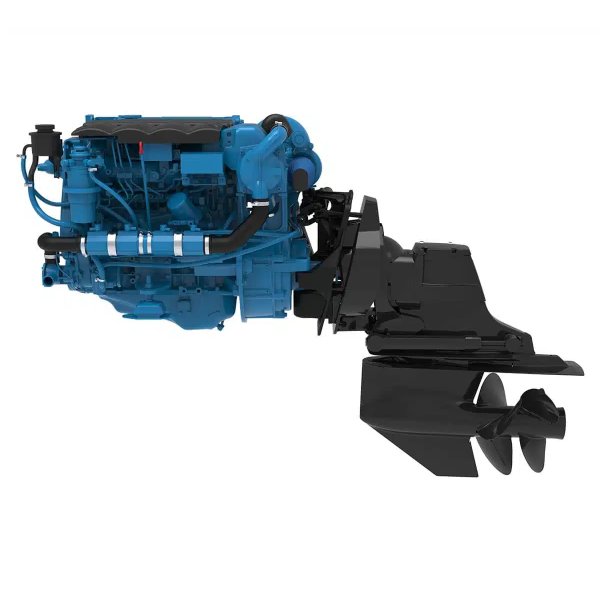

Nanni Engine Z4.230 Prepared for Bravo (Left), No Gearbox, No Reduction

SKU: CN T4230ZBA5

€ 50.684,81

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine Z4.230 is a 230 hp marine engine designed for Bravo (Left) applications. With a displacement of 2,982 cm³ and a peak torque of 569.4 Nm at 2,000 rpm, it operates at 3,600 rpm. This engine includes a direct injection system, turbocharging, and a closed cooling system. Compliant with the latest emission standards, it has a dry weight of 476 kg when coupled with the Bravo X Three system, offering reliability and efficiency for marine use.

Description
Ask a Question

Nanni Engine Z4.230 Prepared for Bravo (Left), No Gearbox, No Reduction

Introducing the Nanni Engine Z4.230, specifically designed for the Bravo (Left) configuration without a gearbox or reduction system. This powerful diesel engine delivers impressive performance with a variety of notable features and specifications.
- Power at crankshaft: 169.1 kW [230 hp]
- Displacement: 2,982 l [182 in3]
- Configuration: 4 cylinders in line
- Engine Type: 4-stroke diesel
- Bore and Stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression Ratio: 15 : 1
- Rated Speed: 3600 rpm
- Idle Speed: 680 rpm
- Peak Torque: 569.4 Nm
- Peak Torque Speed: 2000 rpm
- Engine Base: Toyota
- Fuel System: Direct injection, high-pressure common rail electronically controlled
- Air Intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum Mounting Angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry Weight with Bravo X Three: 476 kg [1049.4 lbs]
Engine Specifications Overview

This section highlights the key technical specifications of the Nanni Engine Z4.230, providing a quick reference for performance and engine details.
- Horsepower (kW): 230 (169.2)
- RPM: 3600
- Cylinders / Displacement: 4 / 2982 cm³
- Gearbox: None
- Reduction: None
- Panel: Si4
